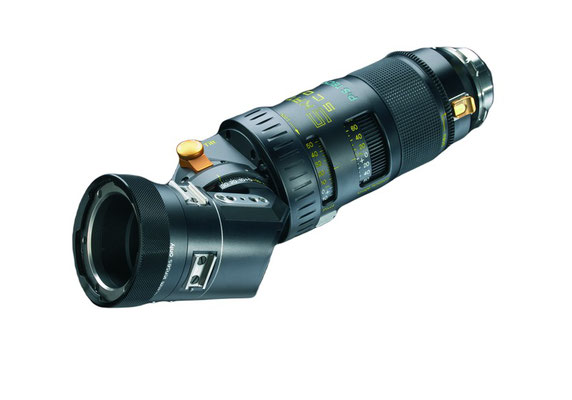

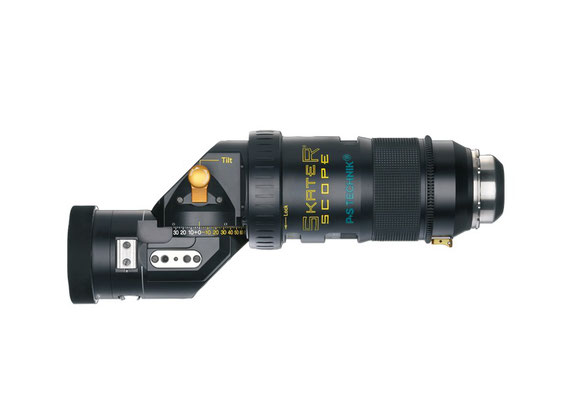

SKATER Scope

The SKATER Scope is the first truly compact periscope lens system. It can be used as a straight version (borescope) and as a bent version (periscope) with any desired angle. As it is considerably shorter in its overall length than comparable systems, with clear operating controls, the SKATER Scope makes it possible to work quickly and intuitively.

  • Movable tilt module from -105° to +105°
  • Lens block pivots full 360°
  • Unlimited 360° image rotation
  • Aperture T5.6 (calculated aperture 4 1/3, light loss 2/3)
  • 0.8 module gear
  • Covers Super 35
  • Use your PL lenses

Euro 34.800,00 (zzgl. MwSt./ex VAT)

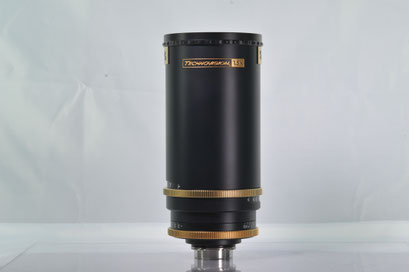

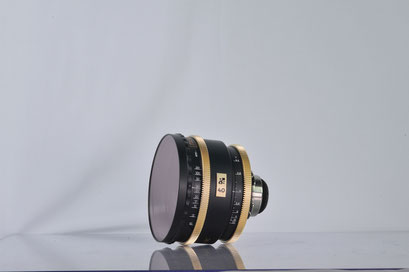

TECHNOVISION 1.5X - New classic look made in Germany

Cinematographers who seek the classic look of the iconic TECHNOVISION lenses from the 1970s can now achieve that look with the new TECHNOVISION 1.5X series consisting of five focal lengths 40, 50, 75, 100 and 135mm.

The squeeze factor 1.5X offers the best flexible solution to use digital and scalable sensors from S35 to Full Format (36 x 24mm) – and from the 50mm on up to the 65/70 scope format.

The anamorphic elements are placed in the front to achieve the unique anamorphic bokeh. High contrast and deliberate flares define the lens character.

  •  Front Anamorphic lenses with 1.5X factor, universal on Large format from 16:9 to 1:2.40
  • TECHNOVISION “Emulsion”, rich in contrast but including chromatic aberrations and flares
  • Designed for Full Format, PL and LPL mount
  • Aperture from T2.2 to T2.5
  • Innovative combination of single and multilayer coating
Focal Lengt            T-Stop                      CFD (Closest Focusing Distance)  Weight
40mm

T2.2

0,7m / 2'3ft 2,4kg / 5,3lbs
50mm T2.2 0,7m / 2'3ft 2,6kg / 6,6lbs
75mm T2.5 1m / 3'3ft 4kg / 8lbs
100mm T2.5 1m / 3'3ft 4kg / 8lbs
135mm T2.5 1m / 3'3ft 5,5kg / 12lbs

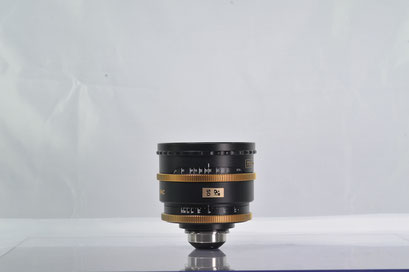

TECHNOVISION 1.5X 40mm T2.2 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 21.500,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 50mm T2.2 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 21.500,00 (zzgl. MwSt./ex VAT)

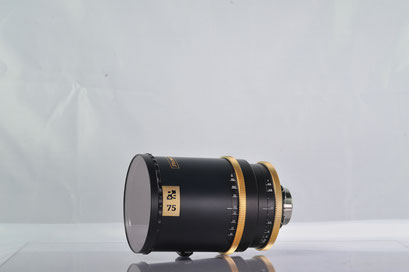

TECHNOVISION 1.5X 75mm T2.5 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 21.500,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 100mm T2.5 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 21.500,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 135mm T2.5 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 21.500,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 150mm T2.5 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 24.700,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 200mm T2.5 PL-Mount standard, LPL-Mount additional, meter or feet

Euro 24.700,00 (zzgl. MwSt./ex VAT)


TECHNOVISION 1.5X Zoom

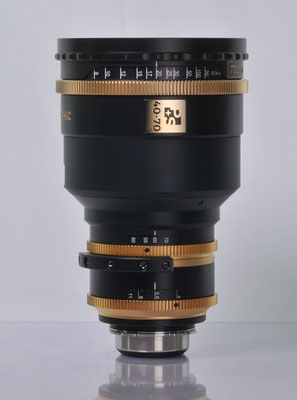

TECHNOVISION 1.5X 40-70mm Zoom, PL Mount PS-IMS Lens Mount available, meter or feet

Euro 25.800,00 (zzgl. MwSt./ex VAT)



TECHNOVISION 1.5X 70-200mm Zoom, PL Mount PS-IMS Lens Mount available, meter or feet

Euro 30.100,00 (zzgl. MwSt./ex VAT)

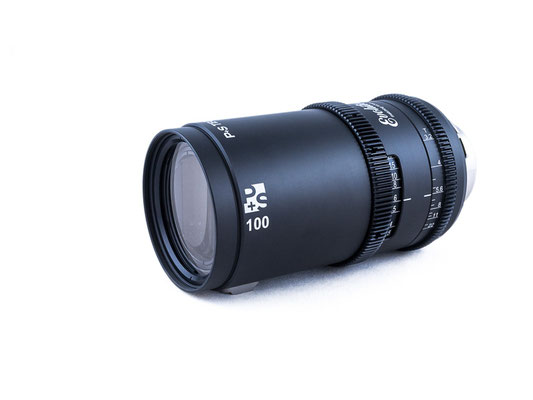

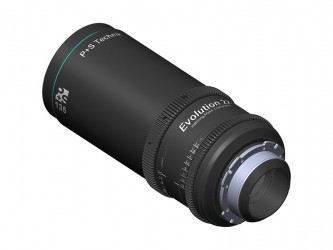

Evolution 2X lenses

Evolution 2X lenses by P+S TECHNIK based on optical design of KOWA Anamorphics

The P+S TECHNIK anamorphic Evolution 2X lenses are based on the original optical design of the KOWA Anamorphic and the P+S TECHNIK lens rehousing. The original KOWA Anamorphic prime lenses have been produced until the 1970s and usually for four different primes are available: 40mm, 50mm, 75mm, 100mm.

„We got feedback that the original focal range is limited, so we added two additional focal lengths, a wide-angle and a telephoto 135mm, which match the Look of the original set. So we named them Evolution 2X lenses.“ says Alfred Piffl, founder of P+S TECHNIK and continues: „We aim to offer the cinematographer professional products to tell stories - (e)motion pictures - whether published on silver screen, television or video stream. CinemaScope or wide screen is a wonderful format visualizing stories.“

Genuine Anamorphic Look

The look and bokeh of the Evolution 2X lenses matches the genuine anamorphic look of the original KOWA Anamorphic lenses. The optical design of the Evolution 2X lenses is based on their original optical design and the front anamorphic principles. They are low in contrast and warm in color and can be made to flare. The Evolution 2X lenses can also expand original lens sets or complete sets that miss the 100mm lens.

The lenses are built in a compact, lightweight housing with modern cam driven internal focus mechanics. The focus throw has changed significantly compared to the originals. The Evolution lenses offer a 200° angle on the focus ring and a 100° on the aperture ring. „Of course mod 0.8 gears and the same position of the gear rings throughout the set integrates them well in the modern production environment“ explains Anna Piffl, Managing Director at P+S TECHNIK.

The 80mm front diameter is perfect for the use of a clip-on matte box and a 77mm thread was added for screw-in filters. That makes the Evolution 2X ideal anamorphic lenses for handheld, Steadicam or drone camera work.

In addition, the Evolution 2X lenses are equipped with an IMS exchange lens mount. Standard mount is PL-mount, optionally available are EF-mount, e-mount and MFT mount.

Evolution 2X 32mm T2.4 lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)

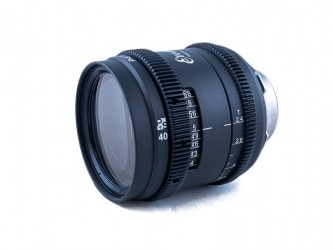

Evolution 2X 40mm T2.4 lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)

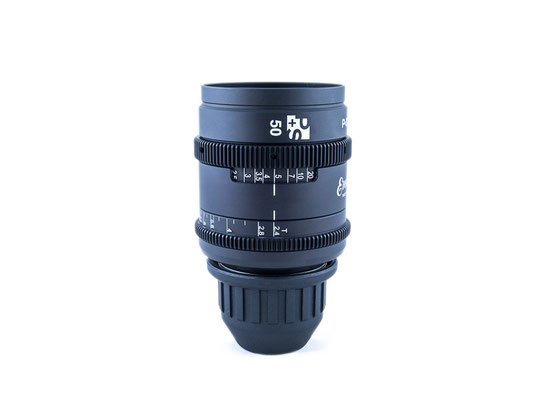

Evolution 2X 50mm T2.4 lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)

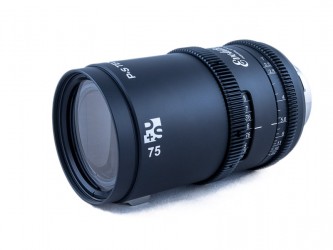

Evolution 2X 75mm T2.5 lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)



Evolution 2X 100mm T3.2 lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)



Evolution 2X 135mm T3.x lens, PL-Mount

Euro 16.800,00 (zzgl. MwSt./ex VAT)
