Cooke Cine Lenses

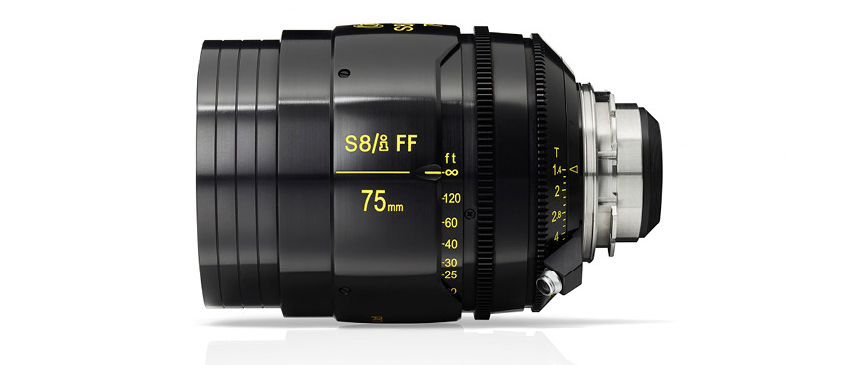

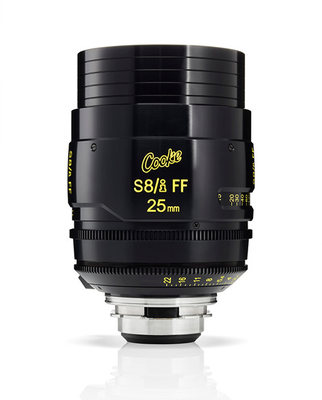

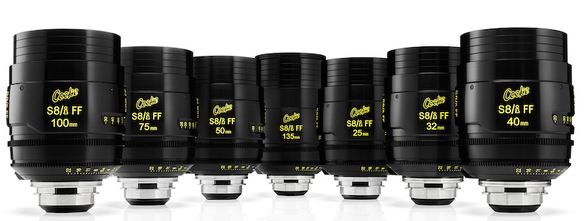

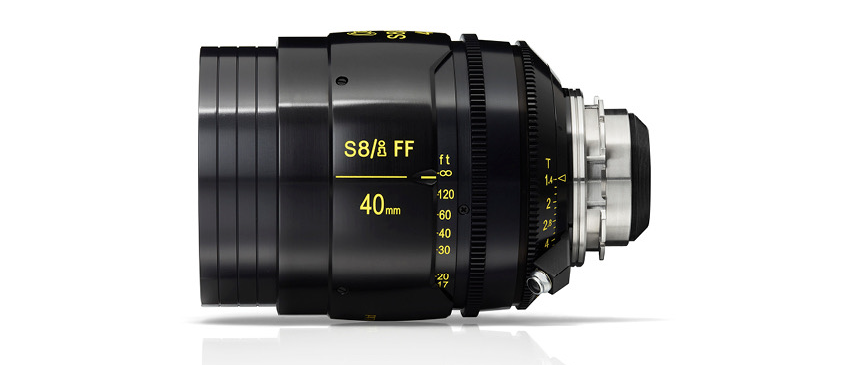

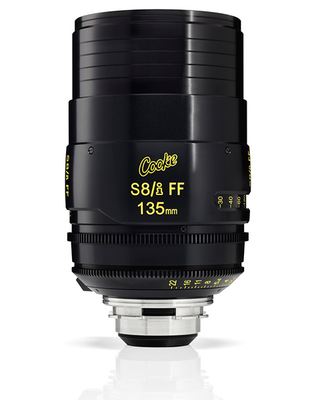

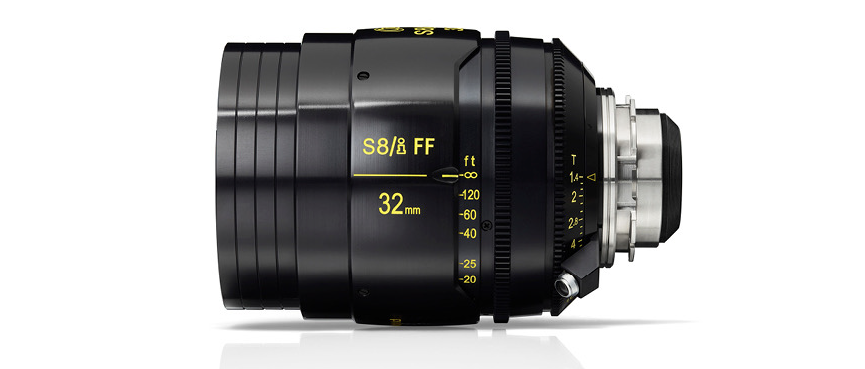

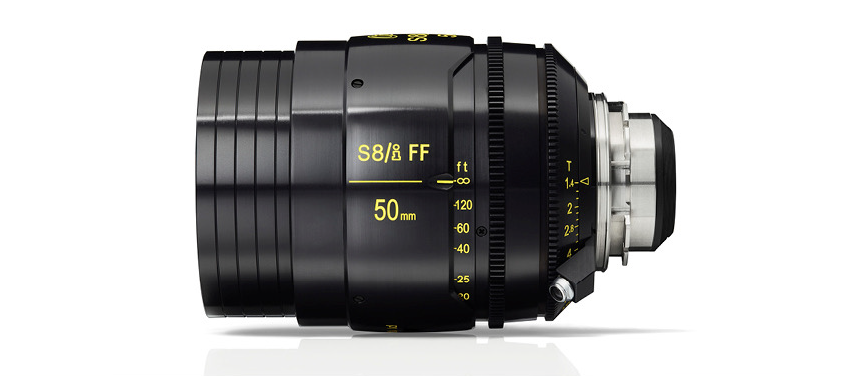

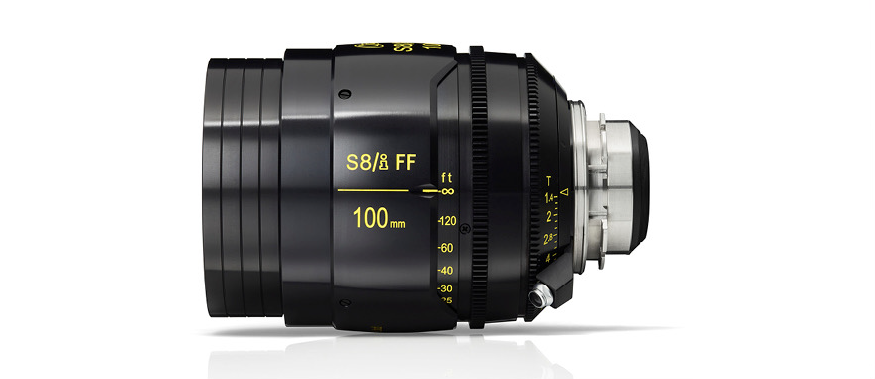

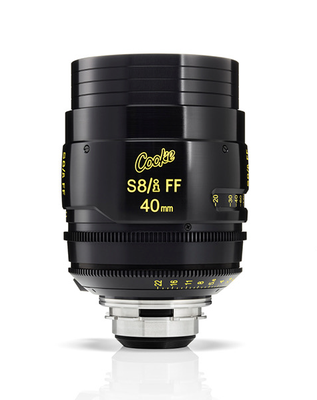

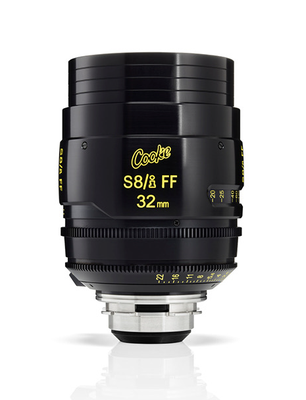

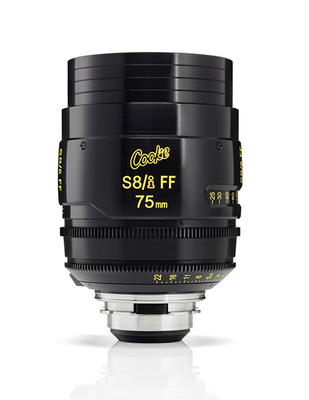

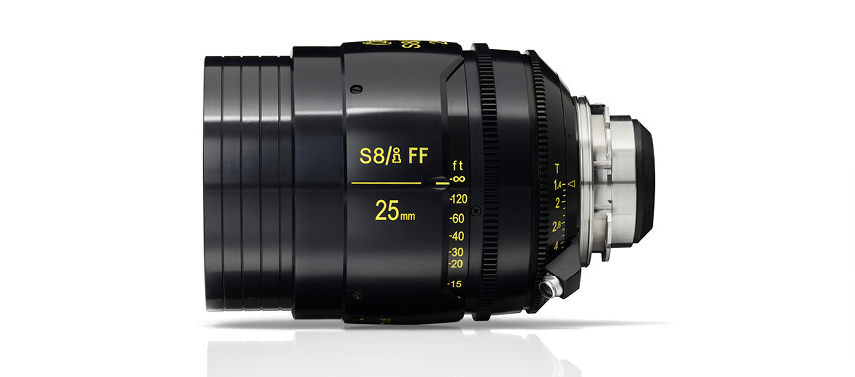

Cooke S8/i - Fast, with Full-Frame and beyond coverage - new -

puhlmann.tv - Cooke S8/i - Fast, with Full-Frame and beyond coverage - new -

Technically Beautiful

Your choice of lens is not just a technical decision, it determines individuality and expresses creativity. That’s why we’ve created our new technologically advanced S8/i FF range, to be faster, lighter, and smarter, ensuring its all-spherical design produces an evolution of our iconic and original Cooke Look.



A complete range of perfectly matched high-speed full frame cine lenses, consisting of 16 different focal lengths from 18mm to 350mm. All created to the same exacting standard and hand-crafted to the same exceptional quality and reliability.



All-Spherical Design- The new S8/i FF features premium all-spherical lenses, which produce a uniquely organic, film-like quality, which is characterised by smooth, spherical bokeh and minimal colour fringing. Enabling you to create sensitive and emotive images with a high degree of dimensionality.



Faster - With a maximum aperture of T1.4 across the majority of the focal length range, the new S8/i FF lenses are amongst the very fastest produced for larger than Full Frame capture. They also offer greater control over depth of field and flare characteristics, whilst still providing excellent low light performance.



Lighter - Compact and light, agile and easy to handle, the new S8/i FF lenses have been created for a wide variety of situations and today’s compact digital cinema cameras. Being lighter however, has not compromised strength, durability, or their exceptional image aesthetic.



Smarter - Designed from the ground up to incorporate our very latest intelligent /i technology, which includes: /i data focus and iris position, /i motion inertial data and /i maps factory calibrated shading and distortion data. They also benefit from a high degree of modularity, which increases reliability and reduces servicing time.



Launch lineup consisting of 7 lenses available now (25, 32, 40, 50, 75, 100 and 135mm), with a further 9 lenses available in late 2022.



25mm 32mm 40mm 50mm 75mm 100mm 135mm

T-Stop range

T1.4-T22 T1.4-T22 T1.4-T22 T1.4-T22 T1.4-T22 T1.4-T22 T1.4-T22

Close focus from lens front

335mm 460mm 450mm 500mm 585mm 660mm 946mm

Min. marked object distance

550mm 22in 650mm 2ft 3in 650mm 2ft 3in 700mm 2ft 3in 800mm 2ft 9in 850mm 2ft 9in 1200mm 4ft

Angular rotation MOD end stop

270° 270° 270° 270° 270° 270° 270°

Length from front of lens to lens mount

162mm 157mm 157mm 157mm 157mm 157mm 200mm

Max. front diameter

104mm 104mm 104mm 104mm 104mm 104mm 104mm

Angular rotation of Iris scale

90° 90° 90° 90° 90° 90° 90°

Max. diagonal angle of view for FF format

81° 67° 56° 47° 32° 24° 18°

Total weight (without lens mount)

2,423kg 2,383kg 2,316kg 2,111kg 2,428kg 2,394kg 3,185kg

Maximum format cover Full Frame beyond (18mm and 21mm are capable of delivering an image circle of 43.3mm the rest of the lineup is capable of delivering an image circle up to 46.3mm)
Focus scales  Two Opposing Focus Scales - Metric/Imperial. Scales marked from MOD to ifinity
Focus drive gear 140 teeth 0.8
Iris scales Two  Opposing Linear T-Scales - Whole and third stops marked
Iris drive gear 134 teeth 0.8
Screw-in filter M99 x 0.75

Please contact us for pricing

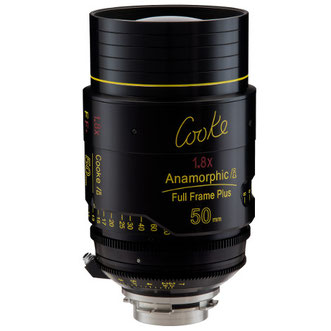

Cooke Anamorphic/i Full Frame Plus NEW!

The Anamorphic/i Full Frame Plus prime lenses represent the next logical step in the evolution of filmmaking:  large format production with anamorphic characteristics, including flare and oval bokeh.



Coverage circle covers a full 24 x 36 still size sensor with 1.8 squeeze. At 2x squeeze you would lose too many pixels. At 1.6x you won't get enough anamorphic character. At 1.8x you have that sweet spot with a great anamorphic feel and about 90% of the pixels at 2.4:1. Shoot at 2.7:1 and you have all the available frame and 100% of the pixels.



Superb optical and mechanical performance, control of flare, distortion, veiling glare and spherical aberrations at full aperture. The cam-type focus mechanism allows for smooth focus adjustments. Modular construction increases ease of maintenance and serviceability.



And, the Anamorphic/i Full Frame Plus lenses come equipped with /i Technology for frame by frame digital information capture, as do all modern Cooke cine lenses for film and digital capture.



Available in focal lengths: 32, 40, 50, 75, 100, 135 and 180mm, over the next 12 months.

  32mm 40mm 50mm 75mm 100mm 135mm 180mm
T-Stop Range T2.3-T22 T2.3-T22 T2.3-T22 T2.3-T22 T2.3-T22 T2.3-T22 T2.3-T22
 Angular Rotation of Iris Scale
 90° 90° 90° 90° 90° 90° 90°
Min. Marked Object Distance
TBD TBD 850mm/33in TBD TBD TBD TBD
Close Focus from Lens Front TBD TBD 600mm/24in TBD TBD TBD TBD
Angular Rotation to MOD Endstop 270° 270° 270° 270° 270° 270° 270°
Max. Diagonal Angle of View for Super 35 Format TBD TBD 74.3° TBD TBD TBD TBD
Length from Front of Lens to Lens Mount TBD TBD 203mm/7.99in 203mm/7.99in 203mm/7.99in 203mm/7.99in TBD
Max Front Diameter TBD TBD 110mm/4.33in 110mm/4.33in 110mm/4.33in 110mm/4.33in TBD
Total Weight TBD TBD 3.8kg/8.4lbs 3.8kg/8.4lbs 3.8kg/8.4lbs 3.8kg/8.4lbs TBD

Please contact us for pricing


Cooke S7/i Full Frame Plus Primes T2.0

Shoot 35mm, Super 35mm, Full Frame and Beyond

The Cooke S7/i, T2.0 Full Frame Plus Primes are designed to cover the emergent full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle).

Shoot 35mm / Super 35mm formats, full frame, VistaVision and beyond - all with The Cooke Look®. We have you covered with our S7/i Full Frame Plus lenses.

Superb optical and mechanical performance, control of flare, distortion, veiling glare and spherical aberrations at full aperture. The cam-type focus mechanism allows for smooth focus adjustments. Modular construction increases ease of maintenance and serviceability.

And, the S7/i lenses come equipped with /i Technology for frame by frame digital information capture, as do all modern Cooke cine lenses for film and digital capture.



Feature Highlights:

  • Covers at least 46.31mm image circle
  • Colour matched to Anamorphic/i, S4/i, miniS4/i, 5/i and Pancro/i Classic lenses
  • Award-winning cam style mechanism for smooth focus adjustments
  • Especially well balanced for astigmatism and correct for lateral and longitudinal aberrations over the entire image area
  • Supplied with the next generation of /i Technology for lens metadata capture
  • Linear iris
  • The Cooke Look®, of course

Cooke S7/i 16mm/T2.0 - NEW!

Cooke S7/i 18mm/T2.0

Cooke S7/i 21mm/T2.0 - NEW!

Cooke S7/i 25mm/T2.0

Cooke S7/i 27mm/T2.0 - NEW!

Cooke S7/i 32mm/T2.0

Cooke S7/i  40mm/T2.0

Cooke S7/i  50mm/T2.0

Cooke S7/i  65mm/T2.0 - NEW!

Cooke S7/i  75mm/T2.0

Cooke S7/i 100mm/T2.0

Cooke S7/i 135mm/T2.0


Please contact us for pricing

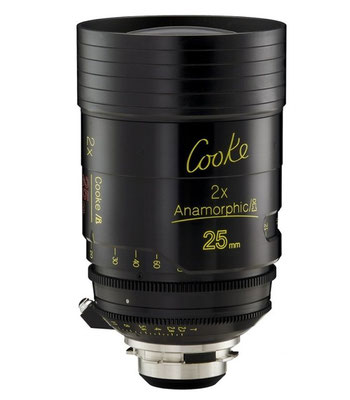

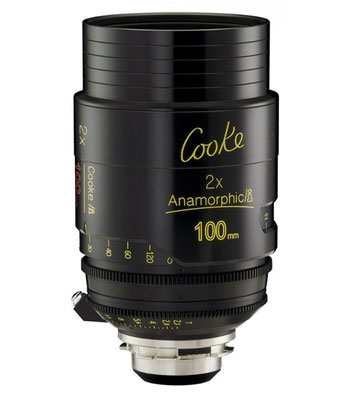

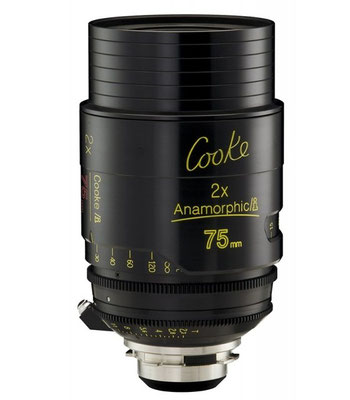

Cooke Anamorphic/i Prime Lenses T2.3

Puhlmann Cine GmbH - Cooke Anamorphic/i Prime Lenses

Optical Design

The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.



Electronics

Accessible via cable connector near the lens mount and contacts in mount that sync with /i compatible cameras and accessories.



Colour Balance

All Cooke Anamorphic/i prime lenses are colour balanced to a specification within parameters approved by Kodak and are colour-matched and compatible with Cooke 5/i, Cooke S4/i, miniS4/i, and CXX 15-40 mm T2 S4/i Zoom lenses.



T2.3 Aperture

All Cooke Anamorphic/i primes have a true T2.3 aperture and cover Super 35mm format.

Cooke Anamorphic/i 25mm/T2.3

Cooke Anamorphic/i 32mm/T2.3

Cooke Anamorphic/i 40mm/T2.3

Cooke Anamorphic/i 50mm/T2.3

Cooke Anamorphic/i 75mm/T2.3

Cooke Anamorphic/i 100mm/T2.3

Cooke Anamorphic/i 135mm/T2.3



Please contact us for pricing


Cooke 5/i Prime Lenses T1.4

puhlmann Cine GmbH - Cooke 5/i Prime Lenses

Optical Design

The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.



Electronics

Accessible via cable connector near the lens mount and contacts in mount that sync with /i compatible cameras and accessories.



Colour Balance

All Cooke 5/i prime lenses are colour balanced to a specification within parameters approved by Kodak and are colour-matched and compatible with Cooke S4/i, miniS4/i, CXX 15-40 mm T2 S4/i Zoom, 18-100mm T3.0 and 25-250mm T3.7 and the SK4 16mm lenses.



T1.4 Aperture

All Cooke 5/i primes have a true T1.4 aperture and cover Super 35mm format.

Cooke 5/i 18mm/T1.4

Cooke 5/i 25mm/T1.4

Cooke 5/i 32mm/T1.4

Cooke 5/i 40mm/T1.4

Cooke 5/i 50mm/T1.4

Cooke 5/i 65mm/T1.4

Cooke 5/i 75mm/T1.4

Cooke 5/i 100mm/T1.4

Cooke 5/i 135mm/T1.4



Please contact us for pricing


Cooke S4/i Prime Lenses T2.0

puhlmann Cine GmbH - S4/i Prime Lenses

Optical Design

The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.



Electronics

Accessible via contacts in PL mount that sync with /i compatible cameras.



Colour Balance

All miniS4/i prime lenses are colour balanced to a specification within parameters approved by Kodak.



Aperture

All miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.

Cooke S4/i 12mm/T2.0

Cooke S4/i 14mm/T2.0

Cooke S4/i 16mm/T2.0

Cooke S4/i 18mm/T2.0

Cooke S4/i 21mm/T2.0

Cooke S4/i 25mm/T2.0

Cooke S4/i 27mm/T2.0

Cooke S4/i 32mm/T2.0

Cooke S4/i 35mm/T2.0

Cooke S4/i 40mm/T2.0

Cooke S4/i 50mm/T2.0

Cooke S4/i 65mm/T2.0

Cooke S4/i 75mm/T2.0

Cooke S4/i 100mm/T2.0

Cooke S4/i 135mm/T2.0

Cooke S4/i 150mm/T2.0

Cooke S4/i 180mm/T2.0

Cooke S4/i 300mm/T2.8


Please contact us for pricing

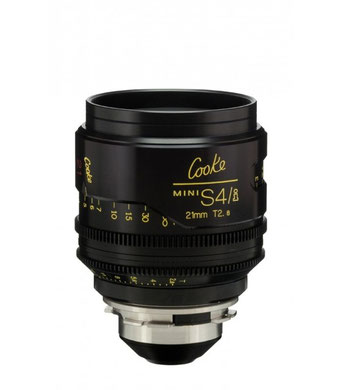

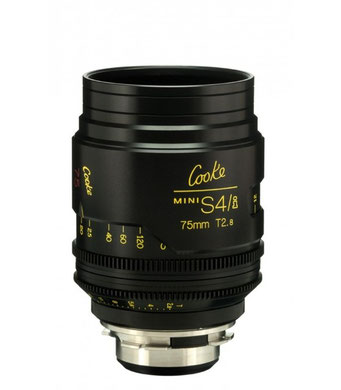

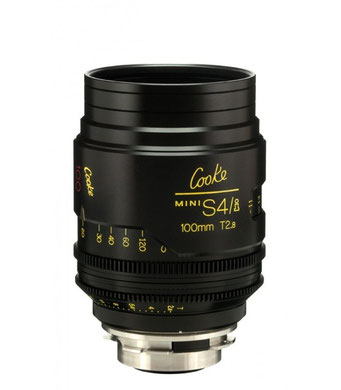

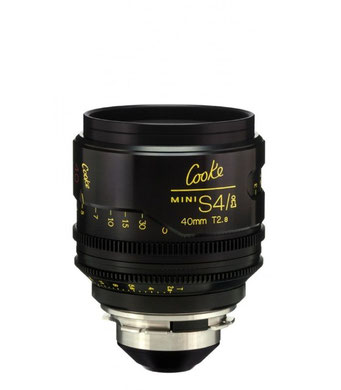

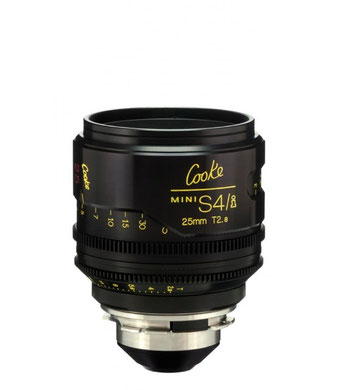

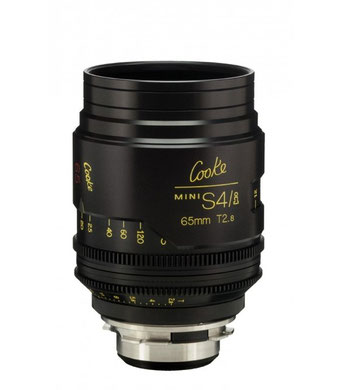

Cooke mini S4/i Prime Lenses T2.8

Optical Design Cooke Mini S4

The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.



Electronics

Accessible via contacts in PL mount that sync with /i compatible cameras.



Colour Balance

All miniS4/i prime lenses are colour balanced to a specification within parameters approved by Kodak.



Aperture

All miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.

Cooke mini S4/i 18mm/T2.8

Cooke mini S4/i 21mm/T2.8

Cooke mini S4/i 25mm/T2.8

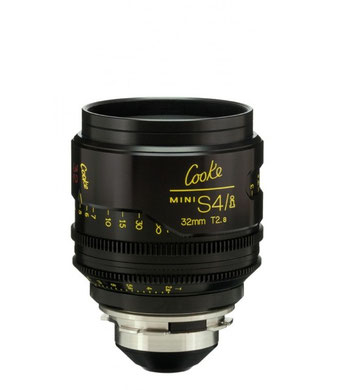

Cooke mini S4/i 32mm/T2.8

Cooke mini S4/i 40mm/T2.8

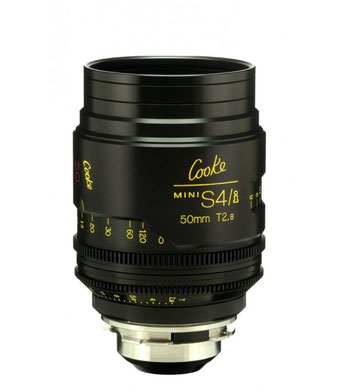

Cooke mini S4/i 50mm/T2.8

Cooke mini S4/i 65mm/T2.8

Cooke mini S4/i 75mm/T2.8

Cooke mini S4/i 100mm/T2.8

Cooke mini S4/i 135mm/T2.8


Please contact us for pricing

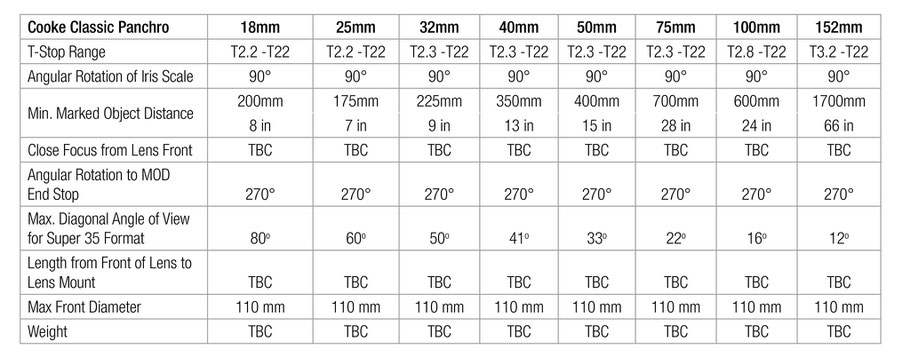

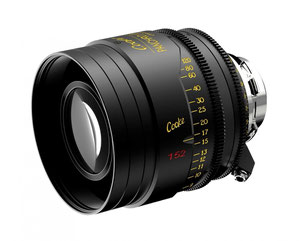

New Cooke Panchro Classics

Puhlmann Cine - New Cooke Panchro Classics

The Cooke Panchro Classics all have a front diameter of 110mm — like the majority of S4/i and 5/i primes.

Puhlmann Cine - Cooke Classic Panchro

New Panchro/i Classic 135mm lens, first in a series of 2018 additions that will also bring 21mm, 27mm, and 65mm Macro



The Panchro Classic line is scheduled to ship around April 2017.

Please contact us for pricing


Cooke Varotal/i Full Frame Zoom

The Varotal/i T2.9 zoom lenses cover all full frame sensors and are matched in resolution, colour and fall-off to the Cooke S7/i range, thus providing a complete suite of Cooke full frame spherical lenses. The focal lengths of the zoom lenses are 30-95mm and 85-215mm respectively. The mounts can be chosen as either PL or LPL at time of order.



Cooke Varotal/i 30-95mm, T2.9

Cooke Varotal/i 85-215mm, T2.9

Please contact us for pricing
