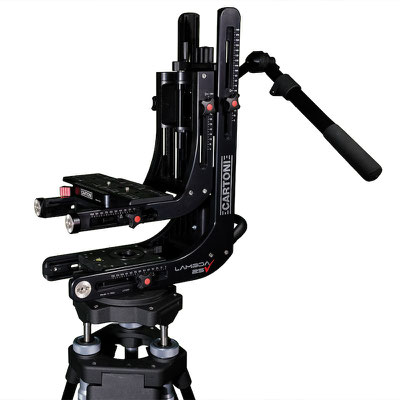

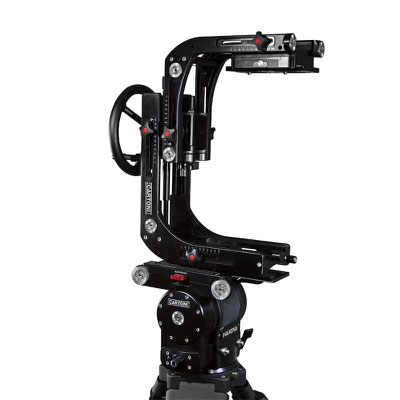

Lambda 25 Fluid Heads SFX

The innovative lightweight LAMBDA 25 represents the ideal solution for Cameras up the 25 kg (55 lbs).

LAMBDA 25 inherits all the classic LAMBDA features with the addi on of pan and lt pierced rotation axis to allow the cable passage and a no limit multiple 360 rotation.

The patented CARTONI Fluid drag system is continuous on both axis.

The LAMBDA 25 Head can be mounted on any classic support as Tripods or Dollies or used in underslung position from Cranes, Jib arms and Dollies.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 25 kg / 55 lbs
  • Weight: 12.0 kg / 26.5 lbs
  • Bowl Diameter: Flat base
  • Type: Nodal
  • Fluid Drag: Continuous
  • Pan Range: 360°
  • Tilt Range: 360°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, 1 short pan bar



Euro 7.750,00 (zzgl. MwSt./ex VAT)

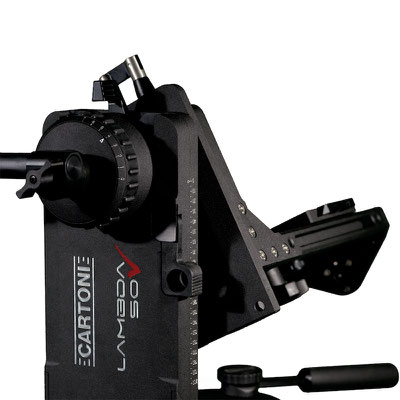

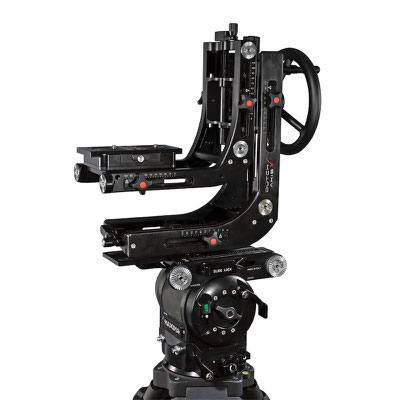

Lambda 50 Fluid Heads SFX

The Award winning LAMBDA Nodal Head is the only Support that allows to set the nodal position with any Camera and pivoting 360° pan, tilt and roll, on the focal plan of any Camera.

The settings are achieved by graduated slides both horizontally and vertically with micrometric cranks for extreme precision. A smart system of orientable counterweight rods can be used when the slide run is not sufficient.

The LAMBDA 50 Head can be mounted on any classic support as Tripods or Dollies or used in underslung position from Cranes and Jib arms.

Optional accessories as 3rd Axis, the orientable pan bar, steering wheel, eyepiece holder and the counterweight rods complete the most versatile of supports.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 50 kg / 110 lbs
  • Weight: 21.0 kg 7 46.3 lbs
  • Bowl Diameter: Flat
  • Type: Nodal
  • Fluid Drag: 7 steps + 0
  • Counterbalance: 0
  • Pan Range: 360°
  • Tilt Range: +/-65°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, 1 short pan bar

Euro 12.500,00 (zzgl. MwSt./ex VAT)

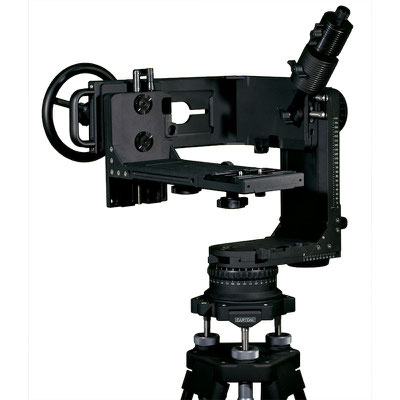

Dutch Head Fluid Heads SFX

This special accessory has been conceived to add a 3rd axis to a standard Fluid Head and allow the lateral movement called "Dutch angle", enhancing special effects.

CARTONI C40S Dutch Head is designed to make exceptionally smooth side-tilt effects simple and straightforward to execute.

The Dutch Heads integrates the award winning CARTONI fluid module in progression from "0" to 7 intensity. The counterbalance system features the 7 step spring mechanism.

The CARTONI Dutch Head interface directly with the quick release plate on any camera support head featuring the European style quick release plate or can be attached by 2 3/8" screws.

A special telescopic orientable pan bar completes the equipment.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 45 kg / 99 lbs
  • Weight: 8.0 kg / 17.6 lbs
  • Bowl Diameter: Plate
  • Type: Dutch
  • Fluid Drag: 7 steps + 0
  • Counterbalance: 7 steps + 0
  • Pan Range: 360°
  • Tilt Range: +/-65°
  • Temperature Range: -40°/+60°

includes: Fluid head,  camera plate,  1 telescopic pan bar

Euro 5.820,00 (zzgl. MwSt./ex VAT)

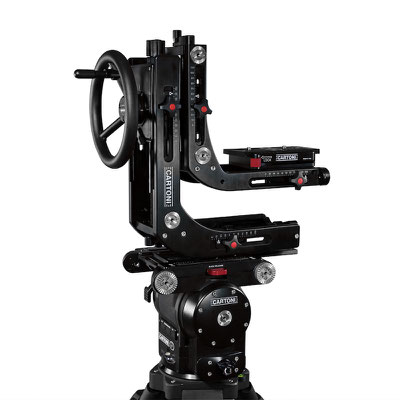

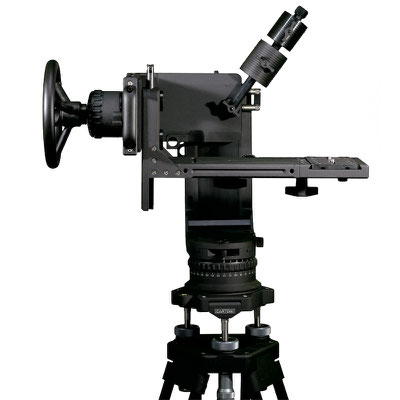

Total Dutch Head Fluid Heads SFX

A patented new revolutionary tool to add a 3rd axis lateral rotation to any classic heavy duty pan and tilt head

Allows unprecedented 360 ° rotation for extraordinary creative shots.

The rotation is driven by a steering wheel pierced in the center for cable channel.

Two 1 kg counterweights complete the set for true nodal rotation around the optical center.

The Total Dutch head is available as a product ready to be installed on top of any head via two 3/8 “ screws, or can be composed with Lambda 25 Dutch axis plus the camera stage of the Lambda 25 head.

After setting the standard with its famed DUTCH Head in 2000, CARTONI has expanded the canted angle capability, creating the ultimate in DUTCH angle compositions.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 25 kg / 55 lbs
  • Weight: 10.5 kg / 23.1 lbs
  • Bowl Diameter: Flat base
  • Fluid Drag: Continuous
  • Pan Range: 360°
  • Temperature Range: -40/+60°C

includes: Total Dutch, camera plate, 1 handwheel, counterweight

Euro 6.390,00 (zzgl. MwSt./ex VAT)

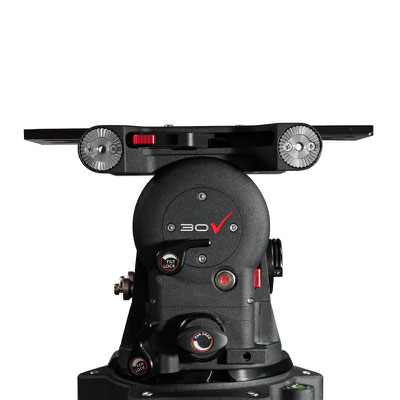

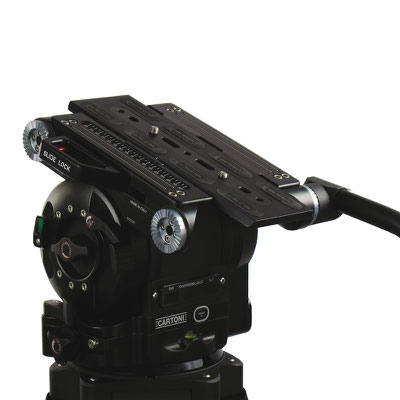

Maxima 30 Fluid Heads Flat base

The ultimate innovation in CARTONI Fluid Heads designed for today’s Digital Cinematography.

The fluid movements in both Pan & Tilt are exceptionally smooth with that progression going from almost freewheeling to an extremely consistent maximum drag, the starts and stops are extraordinarily precise.

The famed “wing” counterbalance will assists any Camera payload from 3 (7 lbs) to 30 kg (66 lbs) with a perfect response throughout the entire +/- 90 ° range and can reach up to 40 kg (88 lbs) at 100mm CG.

The MAXIMA 30 includes all the advantages of the famed CARTONI MAXIMA Fluid Head but in a more compact size at a reduced weight of 10,5 kg (23 lbs).

For ease of use a digital read out indicates counterbalance, Pan & Tilt fluid settings at a glance and the bubble level is illuminated. To make the MAXIMA 30 completely user friendly, the Pan & Tilt brakes are conveniently placed on the left side of the head as the camera plate latch, which can be activated with one hand both to disengage the new safety lock and free the camera plate completely.

The camera plate stage accepts all industry standard plates as ARRI, RED, etc. with a sliding run of 140mm clearly referenced by a scale; It also features 4 rosettes attachment for Pan bars and the standard configuration comes with right telescopic pan bar and a left front pan handle. Front box attachment and eyepiece extension holders are optional.



Technical Data:

  • Minimum Payload Capacity: 3 kg / 7 lbs
  • Maximum Payload Capacity: 30 kg / 66 lbs
  • Weight: 10.5 kg / 23.1 lbs
  • Bowl Diameter: Flat
  • Fluid Drag: Continuous
  • Counterbalance: Continuous
  • Pan Range: 360°
  • Tilt Range: +/-90°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, tie down knob

Euro 7.900,00 (zzgl. MwSt./ex VAT)

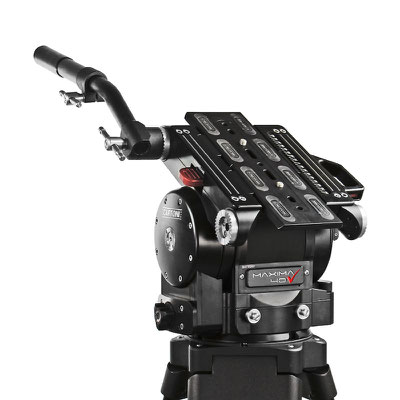

Maxima 40 Fluid Heads Flat base

CARTONI introduces Maxima 40, an innovative compact design Fluid Action Head featuring an amazingly smooth patented counterbalance system. The Maxima 40 is the ideal support for all fully equipped Film Cameras and sophisticated broadcast packages.

The Maxima 40 controls, knobs and levers, are ergonomically placed to ensure camera operators complete ease-of-use in any situation, whether in the studio, location or during outside broadcasts while drag and counterbalance steps are monitored on a digital display.

Payload capacity goes from zero (0) to 40 Kg (88 lbs) with a perfect balance throughout the entire 180° tilt range.

The specifically designed continuous Fluid Drag System performs from almost freewheeling to extremely consistent drag for maximum versatility.

The large sliding camera plate is compatible with Arri and O'Connor slides for increased versatility and ease.

Extremely rugged and precise, the Maxima 40 is meant to become the ultimate industry standard.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 40 kg / 88 lbs
  • Weight: 15.0 kg / 33.1 lbs
  • Bowl Diameter: Flat
  • Fluid Drag: Continuous
  • Counterbalance: Continuous
  • Pan Range: 360°
  • Tilt Range: +/-90°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, tie down knob

Euro 8.800,00 (zzgl. MwSt./ex VAT)


Maxima 5.0 Fluid Heads Flat base



The new Maxima 5.0 is the ultimate answer for Digital Cinematography with heavy duty packages.

Its outstanding patented counterbalance compensates payloads from zero to 50 kg, with “perfect balance” throughout the 180° tilt range.

The patented continuous fluid drag system performs from almost freewheeling to extremely consistent drag for maximum versatility and perfect diagonal shots.

The Maxima 5.0 knobs and levers are ergonomically placed to ensure camera operators complete ease-of-use in any situation, whether in the studio, location or during outside shooting. Drag and counterbalance settings are monitored on a large digital display.

The large sliding camera plate is compatible with Arri , Sony and O’Connor slides. The head comes with a telescopic pan bar and a short front pan bar.

With the classic Mitchell base the Maxima 5.0 interfaces with all flat base Mitchel tripods and platforms.

Optional 150mm bowl base can be easily applied.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 50 kg / 110 lbs
  • Weight: 13.0 kg / 28.7 lbs
  • Bowl Diameter: Flat base
  • Fluid Drag: Continuous
  • Counterbalance: Continuous
  • Pan Range: 360°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, 1 short pan bar,  tie down knob

Euro 8.800,00 (zzgl. MwSt./ex VAT)


Lambda 10 Fluid Heads SFX

As the entry-level member of the CARTONI Nodal Heads the LAMBDA 10 replicates all the features of the classic LAMBDA for a perfect Camera setting at any angle.

Two patented Fluid 3 steps modules smoothly assist all Pan and Tilt movements. The LAMBDA 10 can be mounted on any 100mm bowl Tripod or base and is ideal for underslung use on Jib arms, Cranes, as well as for table top work or medical documentaries. The LAMBDA 10 matches perfectly with the CARTONI JibO.



Technical Data:

  • Minimum Payload Capacity: 0 kg
  • Maximum Payload Capacity: 10 kg / 22 lbs
  • Weight: 6.0 kg / 13.2 lbs
  • Bowl Diameter: 100 mm
  • Type:  Nodal
  • Fluid Drag:  3 steps + 0
  • Pan Range: 360°
  • Tilt Range: 360°
  • Temperature Range: -40°/+60°

includes: Fluid head, camera plate, 1 telescopic pan bar, 1 short pan bar, counterweight for telescopic pan bar, tie down knob



Euro 2.230,00 (zzgl. MwSt./ex VAT)


Alle Preise sind Nettopreise, zzgl. der bei Rechnungsstellung geltende gesetzliche Mehrwertsteuersatz. Alle Angaben und Preise sind freibleibend und können ohne vorherige Ankündigung geändert, entfernt oder ergänzt werden.

All prices are net prices plus value-added tax. All specifications and prices are subject to change without prior notification. Errors and changes excepted.
