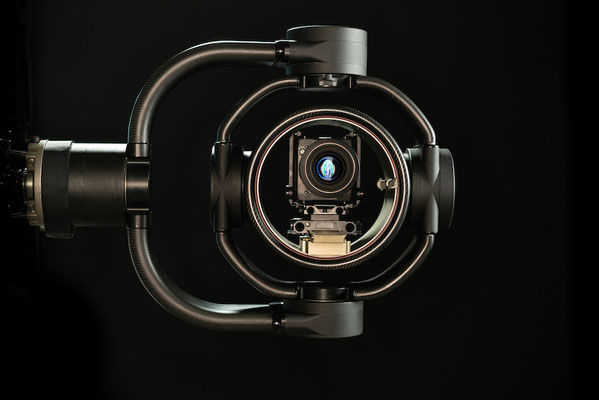

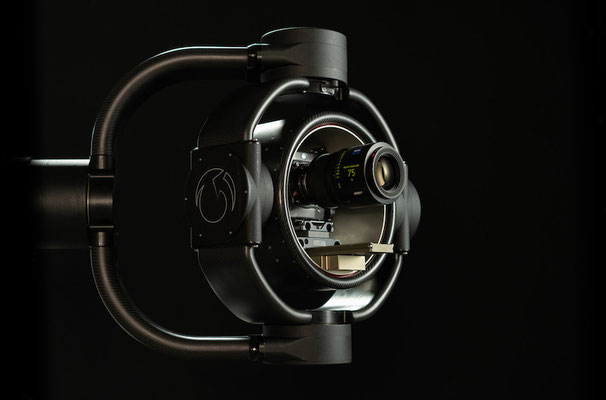

The Genesis

Genesis is only the one  european manufactured gimbal that has unlimitet stabilization, control and mounting capabilities and provides highest level of accuracy.

  • 4-axis design (one redundant and three stabilization axes) eliminates gimbal lock in any orientation;
  • no limitation 360-degree continuous pan, tilt and roll control;
  • 360 deg/sec max control rate for all axes;
  • the gimbal always maintains correct polarity of the control axes regardless of the mounting point orientation;
  • mounting point can keep any orientation and it can be changed during operation;
  • two control modes: relative the earth horizon and relative the camera axes;
  • ability to remember and return to specified orientations in inertial space;
  • zero drift for all axes;
  • always stable horizon regardless of the vehicle maneuvers and high g turns;
  • high stabilization accuracy provides excellent stable picture for long lenses (up to 300 mm) for wide range of payload      inertia;
  • programmable limits, motion recording, tilt control auto reverse;
  • roll auto flip feature when transit through vertical position;
  • ready to work immediately after power on, doesn’t need any starting referencing or other routines;
  • extremely high torque custom direct drive motors for all axes;
  • slip ring SDI and camera power channels trough all axes;
  • tactical grade sensors and components;
  • carbon fiber construction;
  • IP 64 protection class;
  • Payload 25 kg;
  • Dimensions 802x630x235mm
  • Weight 29 kg

The Genesis by Gyro Motion

  • 4 Axis, Gyro-stabilized Gimbal
  • Control station
  • Power supply  AC110-220v
  • Main cable 15m

Euro 198.000,00 (zzgl. MwSt./ex VAT)



Control Options:



Genesis Joy-stick control

  • With docking station for Genesis Control Station.
  • Joystick allows one man to control pan and tilt,
  • roll and zoom

Euro 19.900,00 (zzgl. MwSt./ex VAT)



Genesis Hand Wheels control

  • With docking station for Genesis Control Station.
  • Adjustable friction and detachable roll axis
  • operation, pan - tilt wheel swapping

Euro 17.900,00 (zzgl. MwSt./ex VAT)



Genesis Pan Bar control

  • With docking station for GH Control Station.
  • 150mm Fluid Head operation with pan and tilt drag and friction

Euro 18.900,00 (zzgl. MwSt./ex VAT)



Additional power supply  DC24v

Euro 1.200,00 (zzgl. MwSt./ex VAT)



Spare cable 5m

Euro 1.010,00 (zzgl. MwSt./ex VAT)



Spare cable 10m

Euro 1.250,00 (zzgl. MwSt./ex VAT)



Spare cable 15m

Euro 1.350,00 (zzgl. MwSt./ex VAT)



Cable connector

Euro 600,00 (zzgl. MwSt./ex VAT)



Genesis wireless operation kit (coming soon)

Euro 18.900,00 (zzgl. MwSt./ex VAT)


Unser Angebot richtet sich an gewerbliche Kunden, Selbständige und Freiberufler. Alle Preise sind Nettopreise, zzgl. der bei Rechnungsstellung geltende gesetzliche Mehrwertsteuersatz. Alle Angaben und Preise sind freibleibend und können ohne vorherige Ankündigung geändert, entfernt oder ergänzt werden.

Our services are exclusively offered to commercial customers and not to private individuals. All prices are net prices plus value-added tax. All specifications and prices are subject to change without prior notification. Errors and changes excepted.
