DwarfConnection


"We are a small company located in the heart of Austria, Europe. We cannot honestly claim to produce our wireless systems with our own hands, but we CAN honestly say that we design every single part of our products to meet the expectations we have of a wireless system. We want our systems to be your reliable partners. Whether it is inWe are a small company located in the heart of Austria, Europe. We cannot honestly claim to produce our wireless systems with our own hands, but we CAN honestly say that we design every single part of our products to meet the expectations we have of a wireless system. We want our systems to be your reliable partners. Whether it is in a live broadcast or filmmaking environment - we want you to be happy with the gear we provide. That is why we encourage you to contact us if you ever discover an issue with one of our products. Support will be provided by the filmmakers who designed the system. a live broadcast or filmmaking environment - we want you to be happy with the gear we provide. That is why we encourage you to contact us if you ever discover an issue with one of our products. Support will be provided by the filmmakers who designed the system."

-DwarfConnectionTeam

Puhlmann Cine - DwarfConnection

DC.LINK PRO LINE

DC.LINK PRO is a video link range for filmmakers that need full flexibility with connectivity and want full Meta Data Support!

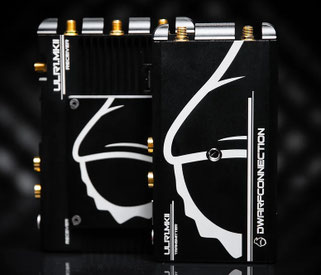

puhlmann.tv - DwarfConnection - ULR1.MKII

ULR1.MKII

Ultra Long Range 1200m los

Power: 9-18V DC

Transmitter - Dimensions (L/W/H): 143.5 x 74.5 x 21.4mm Weight: 380g

Connectors:2xSDI & 1xHDMI in, 1xSDI loop out, 1xmini USB

Battery mount: optional NPF

Power consumption: 8W

Receiver - Dimensions (L/W/H): 147.8 x 100 x 20mm

Weight: 540g

Connectors: 2xSDI & 1xHDMI out, 1xmini USB

Battery mount: V-mount

Power consumption: 8W

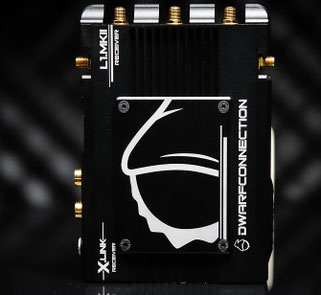

puhlmann.tv - DwarfConnection - X.LINK.L1.MKII

X.LINK.L1.MKII

additional receiver 1200m los

Power: 9-18V DC

Dimensions (L/W/H): 147.8 x 100 x 20mm

Weight: 540g

Connectors: 2xSDI & 1xHDMI out, 1xmini USB

Battery mount: V-mount

Power consumption: 8W


puhlmann.tv - DwarfConnection - CLR2.MKII

CLR2.MKII

Compact Long Range 300m los

Power: 7.2-18V DC

Transmitter - Dimensions (L/W/H): 130.5 x 72 x 21.75mm Weight: 288.8g

Connectors:2xSDI & 1xHDMI in, 1xSDI loop out, 1xmini USB Power consumption: 8W

Receiver - Dimensions (L/W/H): 140.95 x 100 x 22.4mm Weight: 376.6g

Connectors: 2xSDI & 1xHDMI out, 1xmini USB

Power consumption: 8W

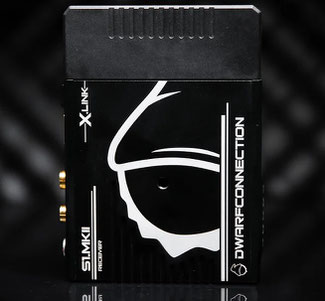

puhlmann.tv - DwarfConnection - X.LINK.S1.MKII

X.LINK.S1.MKII

additional receiver 300m los

Power: 7.2-18V DC

Dimensions (L/W/H): 140.95 x 100 x 22.4mm

Connectors: 2xSDI & 1xHDMI out, 1xmini USB

Weight: 376.6g

Power consumption: 8W


DC-LINK-ULR1.MKII WHDI Set

includes:

1x TX, 1x RX, 9x Antenna, 2x Power Supply,

2x D-Tap Cable 4pin, 1x Magic Arm & Hotshoe Mount,

1x Case DC.X.0027



Euro 7.390,00 (zzgl. MwSt./ex VAT)

DC-LINK-CLR2.MKII WHDI Set

includes:

1x TX, 1x RX, 3x Antenna, 2x D-Tap Cable 4pin,

1x Magic Arm & Hotshoe Mount, 1x Case DC.X.0027





Euro 2.990,00 (zzgl. MwSt./ex VAT)





DC.LINK Lite LINE

DC.LINK LITE | Stable HD Signal | Basic Meta Data | HD-SDI or HDMI

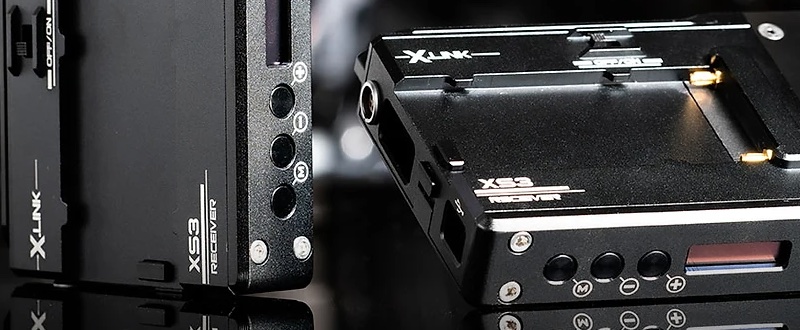

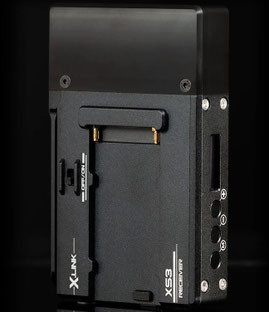

puhlmann.tv - DwarfConnection - X.LINK.XS3

X.LINK.XS3

additonal receiver: 300m/1000ft los

Wireless video up to 300m/1000ft

Controlable fans

OSD can be switched off

OLED display on the side

Supports META start/stop flags and timecode

Fully compatible with all DC.LINK transmitters

Uncompressed video up to 1080p60 | 4:4:4 on HDMI

Delay under 0,001s

Manual frequency selection, no pairing required

Stable connection established by preset channels and no use of DFS

Operates in license-free 5Ghz-ISM band


DC-X.LINK-XS3 WHDI Receiver HDMI Set

includes:

1x RX, D-Tap Cable 4pin,

NPF multidirectional,

Spacer for NPF plate, screws



Euro 1.390,00 (zzgl. MwSt./ex VAT)

DC-X.LINK-XS3 WHDI Receiver SDI Set

includes:

1x RX, D-Tap Cable 4pin,

NPF multidirectional,

Spacer for NPF plate, screws



Euro 1.590,00 (zzgl. MwSt./ex VAT)





DC-VOLT

DC-VOLT V-Mount Battery Sandwich Pro



DC-VOLT V-Mount Battery Plate PRO



DC-VOLT V-Mount Dummy PRO



DC-VOLT Connector



DC-VOLT V-Mount PRO Sandwich Set



Euro 290,00 (zzgl. MwSt./ex VAT)



Euro 180,00 (zzgl. MwSt./ex VAT)



Euro 48,00 (zzgl. MwSt./ex VAT)



Euro 490,00 (zzgl. MwSt./ex VAT)



DC-GO

DC-GO Director's Monitor Cage



DC-GO Director's Monitor Cage - Shogun 7 Kit



DC-GO Director's Monitor Cage - Small HD 703 Kit



DC-GO Mini Director's Monitor Cage



DC-GO Standard Baseplate



DC-GO Mounting Kit - ATOMOS Shogun 7



DC-GO Mounting Kit - Blackmagic Video Assist 7“



DC-GO Mounting Kit - Portkeys HS7-T



DC-GO Mounting Kit - SmallHD 703



DC-GO Accessory Mount No.01 (i.e. for Cmotion Cpro Lens Contr.)



DC-GO Accessory Mount No.02 (i.e. for DJI / TILTA Lens Contr.)



DC-GO Accessory Mount No.03 (i.e. for ARRI WCU4 / Hi5 Contr.)



DC-GO Accessory Connector



DC-GO Locating Pin Adapters



DC-GO Mini V-Mount Ready Bundle



DC-GO Mini RX Bundle

Euro 410,00 (zzgl. MwSt./ex VAT)



Euro 415,00 (zzgl. MwSt./ex VAT)



Euro 250,00 (zzgl. MwSt./ex VAT)



Euro 290,00 (zzgl. MwSt./ex VAT)



Euro 125,00 (zzgl. MwSt./ex VAT)



Euro   80,00 (zzgl. MwSt./ex VAT)



Euro 170,00 (zzgl. MwSt./ex VAT)



Euro 130,00 (zzgl. MwSt./ex VAT)



Euro 190,00 (zzgl. MwSt./ex VAT)



Euro 120,00 (zzgl. MwSt./ex VAT)



Euro 160,00 (zzgl. MwSt./ex VAT)



Euro   28,00 (zzgl. MwSt./ex VAT)



Euro   35,00 (zzgl. MwSt./ex VAT)



Euro 560,00 (zzgl. MwSt./ex VAT)



Euro 1.590,00 (zzgl. MwSt./ex VAT)









DC.CLICK

DC.CLICK Quick Release Tilt Head for Monitor Cages



puhlmann.tv - DwarfConnection - DC.Click

Consisting of a tripod head and the universal quick release plate, DC.CLICK fits most monitor cage solution on the market and is a perfect match to our DC.GO cage.

It features easy snap in and release, predefined hard stops and adjustable friction guarantees reliable holding force on any 16mm C-Stand pin or 3/8" screw pin



DC-CLICK V2 Quick Release Tilt Head for Monitor Cages

Euro 290,00 (zzgl. MwSt./ex VAT)


Unser Angebot richtet sich an gewerbliche Kunden, Selbständige und Freiberufler. Alle Preise sind Nettopreise, zzgl. der bei Rechnungsstellung geltende gesetzliche Mehrwertsteuersatz. Alle Angaben und Preise sind freibleibend und können ohne vorherige Ankündigung geändert, entfernt oder ergänzt werden.

Our services are exclusively offered to commercial customers and not to private individuals. All prices are net prices plus value-added tax. All specifications and prices are subject to change without prior notification. Errors and changes excepted.
