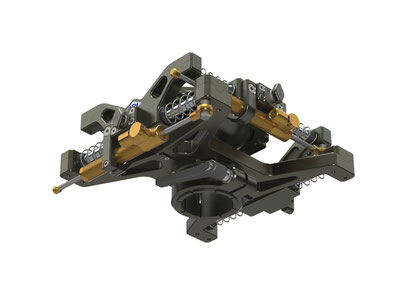

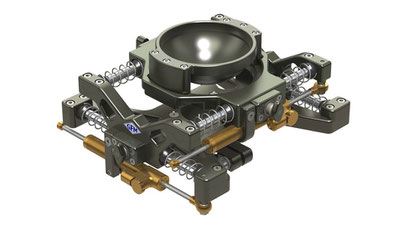

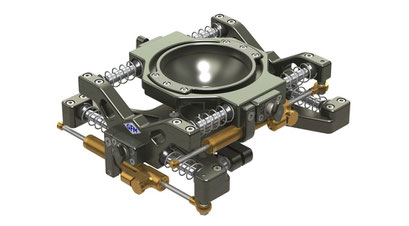

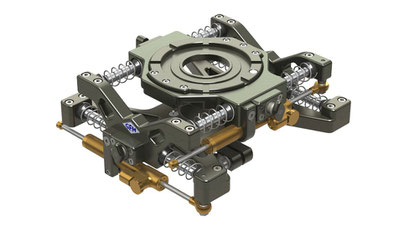

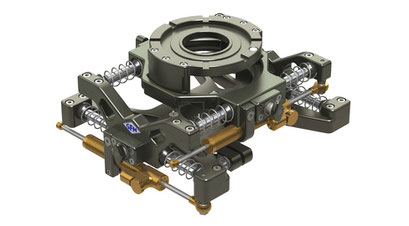

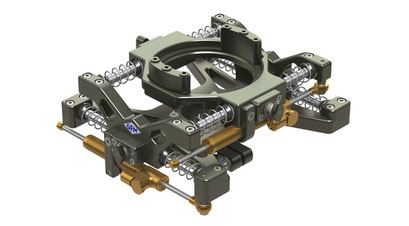

GF-Vibration Isolator

GFM‘s low profile Vibration Isolator helps control vibrations in the X & Y horizontal axis.

The standard springs provide a substantial reduction in abrupt stops and help smoothen out movement ends. Adjustable hydraulic shocks can be installed to increase the setting range. Drag adjustment and a complete lock off is possible.



FEATURES

  • 9 kg / 20 lbs weight (basic version)
  • up to 85 kg / 189 lbs payload
  • Temperature range from -20° to +50° Celsius / -4° to +122° Fahrenheit (with hydraulic shocks)
  • Dimensions (L x W x H): 33 x 40 x 14,5 cm / 13“ x 16“ x 6“
  • supports bowl and Mitchell camera heads
  • interchangeable Euro-adapter and Mitchell base mounts
  • Dampening Standard: 8 springs / Optional: 2 adjustable hydraulic shocks

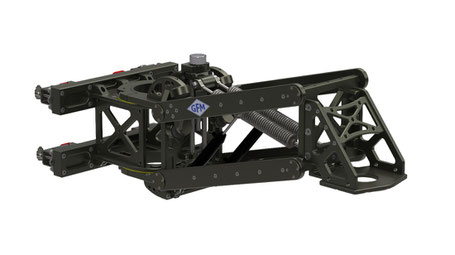

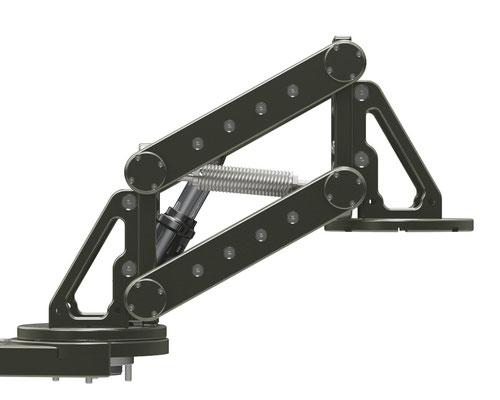

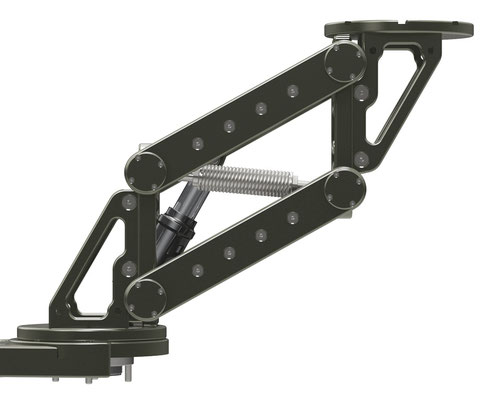

GF-Maxi Shock Absorber

Puhlmann Cine - GFM Maxi Shock Absorber

The Maxi Shock Absorber is for use with gyro stabilized heads to reduce high & low frequency vibrations and hard impact shocks during high speed chases on rough and bumpy terrain. The best results are achieved when used with the Iso-Dampener.

The Maxi Shock Absorber allows for individual adjustment and setting, depending on the choice of stabilized head and taking into consideration the terrain of the shooting environment.



FEATURES

  • connects to 48 mm scaffold tube or 150/130 mm pole systems
  • 180° horizontal adjustment range
  • over and underslung operation
  • 41 kg / 90 lbs weight
  • up to 100 kg / 220 lbs payload
  • Lift range: 30 cm / 11“
  • Temperature range from -20° to +50° Celsius / -4° to +122° Fahrenheit
  • Dimensions (L x W x H): 103 x 26 x 40 cm / 40“ x 10“ x 15“

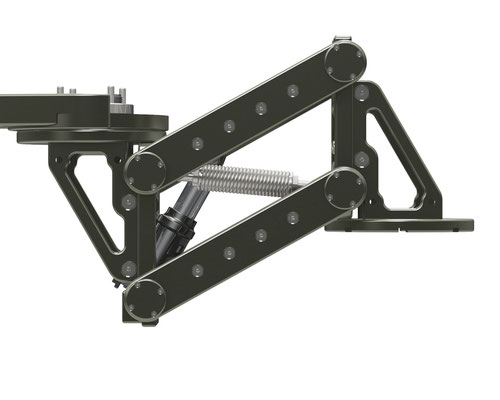

GF-Mini Shock Absorber

The Mini Shock Absorber is for use with gyro stabilized heads to reduce high & low frequency vibrations and semi-hard impact shocks during high speed chases and rough crane moves. The best results are achieved when used with the Iso Dampener.



FEATURES

  • Weight: 9.8 kg / 21 lbs
  • Payload range: 10 kg / 22 lbs to 65 kg / 143 lbs
  • Lift range: 16 cm / 6.5"
  • Temperature range: -20° to +50° Celsius / -4° to +122° Fahrenheit
  • Dimensions (L x W x H): 38 x 19 x 34 cm / 14" x 7" x 13"

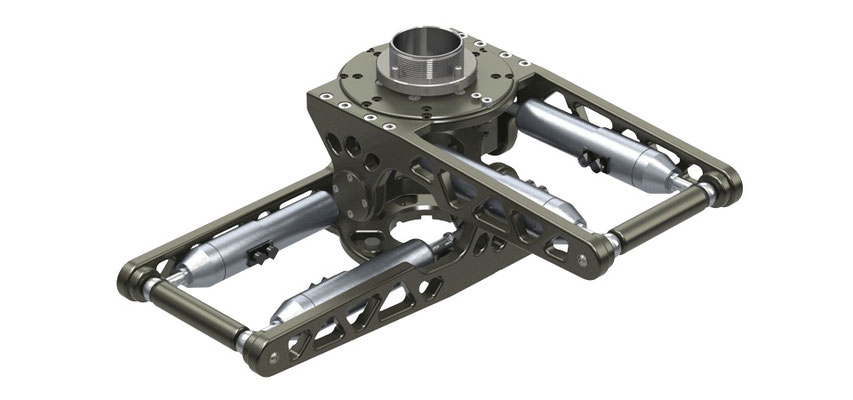

Iso Dampener

The Iso Dampener increases the efficiency of gyro stabilized heads by reducing rotational stress and smoothening out pan starts and stops on telescopic and fixed arm cranes by isolating high frequency vibrations between the mount and head. The Iso Dampener is mounted with a Mitchell connection to the crane or Mini and Maxi Shock Absorber, allowing individual adjustment and tuning, to best suit the choice of stabilized head as well as the shooting environment.



FEATURES

  • connects to cranes or Mini and Maxi Shock Absorber
  • allows individual adjustment and tuning
  • Weight: 9.1 kg / 20 lbs
  • Payload: 85 kg / 189 lbs
  • Temperature range: -20° to +50° Celsius / -4° to +122° Fahrenheit
  • Dimensions (L x W x H): 42 x 42 x 22 cm / 16“ x 16“ x 8“
