Grip Kit

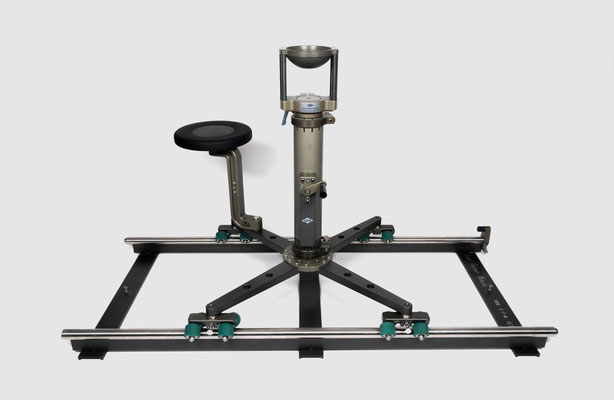

The GF-Grip Kit System is a multifunctional rigging tool for building various sized bazooka bases, track dollies, rolling spiders as well as customized camera mounts, built on set to suit the operational requirements.

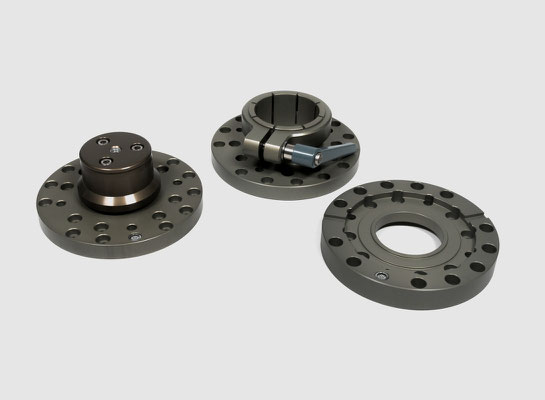

The centre plate is available as Mitchell, Euro-adapter or Euro-clamp (Ø80mm) accepting Combi-rig tubes, Mitchell and Bowl mounts as well as adjustable and fixed risers. Various sized track or studio dollies can be built by adding Skateboard or Studio Wheels.The complete kit fits neatly into one custom designed flight case.



The Extension Legs come in 4 sizes and up to 5 of them can be connected to the center plate at any one time.

Various sized track or studio dollies can be built by adding Skateboard or Studio Wheels. All of the Grip Kit components are surface hardened, high grade a luminum, ensuring added protection and durability. The complete kit fits neatly into one custom designed flight case


GF-Camera Support Plate

Puhlmann Cine - GF Camera Support Plate

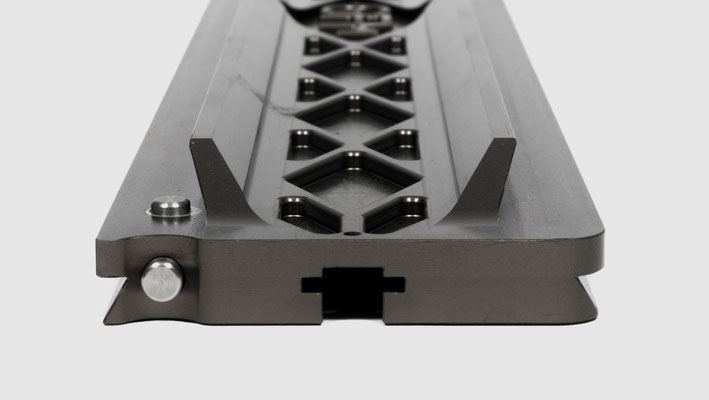

The 30cm / 12" and the 60cm / 24" dovetail, camera support plates, are CNC machined from high grade aluminium and Hard Coated to provide a surface hardened, scratch-proof finish.

  • Stable, nonflex plate
  • Captive, floating 3/8" threaded inserts (lockable) for easy mount to head
  • Surface hardened finish (Hart-Coat ®)

Mountable on all 150mm and Mitchell Heads such as O'Connor, Sachtler, Ronford, Cartoni etc. they accept virtually all regular Cine, bridge and lens support plates. The Camera Support Plate 60 is ideal for use with Cine cameras in conjunction with large lenses such as Angenieux Optimo's, ARRI/Fujinon Alura's, Zeiss Master Zoom's, Canon 30-300 etc.

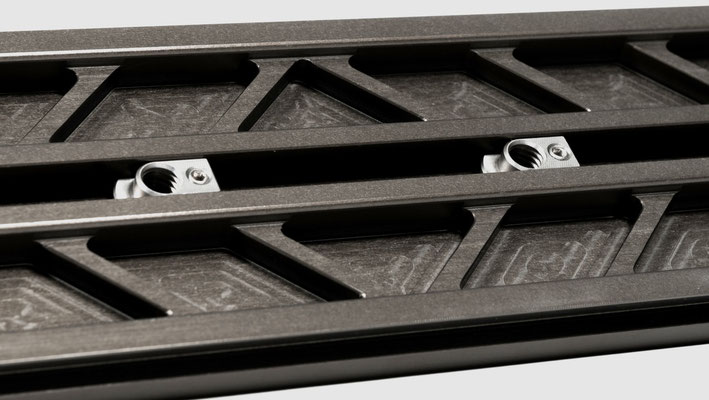

Two floating but captive 3/8" threaded inserts on the underside of the plates provide the flexibility to allow for mounting on most heads or adapter plates. The inserts are fitted with friction adjusters to eliminate any unwanted movement which further improves the comfort and ease of handling when connecting the plate.



GF-Camera Support Plate 60 - AL-2185

Dimensions: 60 x 9,7 x 2,7 cm / 23,6 x 3,8 x 1 inches Weight: 1,7 kg / 3,7 lbs

GF-Camera Support Plate 30 - AL-2186

Dimensions: 30 x 9,7 x 2,7 cm / 11,8 x 3,8 x 1 inches Weight: 0,86 kg / 1,9 lbs

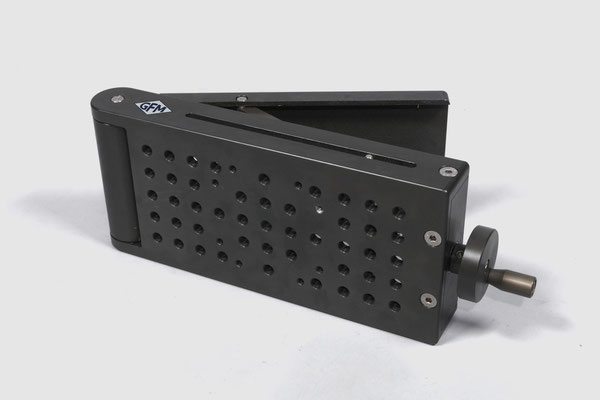

GF-TILT PLATE

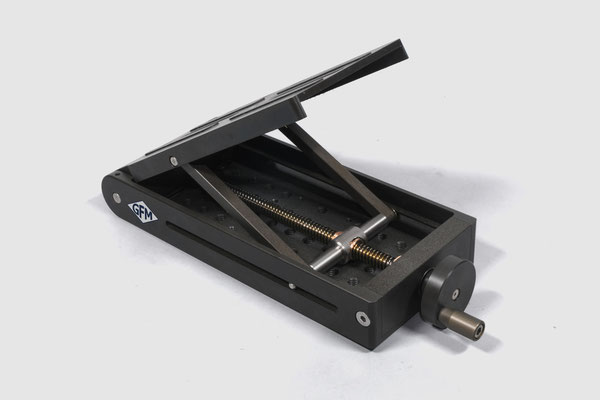

Operates with a self locking spindle drive giving stepless adjustment ranging from 0 to 106°.

Max payload: 30 kg / 66 lbs

Dimensions: 28 x 12,5 x 4 cm 11 x 5 x 1.5 inches

Weight: 2.4 kg / 5.2 lbs


Hi Hats

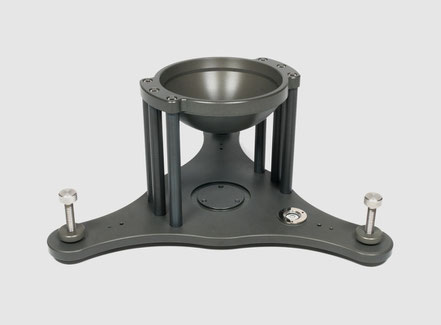

The Hi Hat allows low positioning of the camera. It's available with 100 / 150 mm bowls, Mitchell plate or a Euro-adapter.

AL-2123 Hi Hat with 150 mm bowl
AL-2123 Hi Hat with 150 mm bowl
AL-2123/2 Hi Hat with Mitchell plate
AL-2123/2 Hi Hat with Mitchell plate
AL-2123/1 Hi Hat with 100 mm bowl
AL-2123/1 Hi Hat with 100 mm bowl
AL-2123/3 Hi Hat Mini-Bazooka base with Euro-adapter
AL-2123/3 Hi Hat Mini-Bazooka base with Euro-adapter


GF-LOW ROCKER

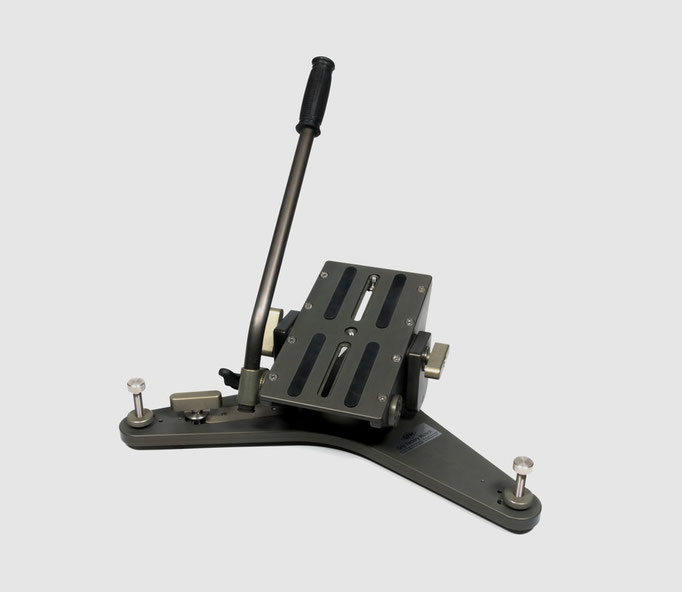

The GF-Low Rocker provides, on the one hand stable, low level, camera pan and tilt movements. On the other hand it is a very solid camera mount for securing the camera in fixed positions (e.g. on a camera car).

FEATURES

  • 360° panning
  • 45° tilt
  • Height: 12cm
  • Weight: 6.3kg
  • extremely solid pan & tilt locks
  • left and righthand handle positions
  • 3 way leveling base
  • Surface hardened finish (Hart-Coat®)


GF-LOW SHOT PLATE

The GF-Low Shot Plate enables the camera to be mounted parallel to an under-slung fluid head. A dedicated camera plate and 3/8" screws are available.

AL-2200 GF-Low Shot Plate
AL-2200 GF-Low Shot Plate
AL-2206 GF-Mini Low Shot Plate
AL-2206 GF-Mini Low Shot Plate
AL-2201 Camera plate
AL-2201 Camera plate


GF-Low Rocker

Puhlmann Cine - Gf Low Rocker
AL-2205 GF-Low Shot Rig

The GF-Low Shot Rig can be attached to an underslung fluid head resulting in a solid, hanging camera mount, utilizing the fluid head's drag and dampening.
