Denz Yoke System

Monitor Yoke System

- secure and balanced mounting solution for use baby stand (5/8") or junior stand (1-1/8")

- milled from the solid using highest durable aluminium

- ability to angle the monitor with a sturdy adjusting knob (made of aluminium)

- thread holes of ARRI pinlock 3/8“ for mounting accessories on bottom and sides

- surface hard-coated

C0100283 Yoke Mount for Small HD 24' Cine Bright Pro Monitor

Euro 995,00 (zzgl. MwSt./ex VAT)


C0100282 Yoke Mount for Small HD 22“ 4K OLED Reference Monitor

Euro 895,00 (zzgl. MwSt./ex VAT)


C0100284 Yoke Mount for Sony Monitor PVM-X1800

Euro 895,00 (zzgl. MwSt./ex VAT)


C0100285 Yoke Mount for Sony Monitor PVM-X2400

Euro 995,00 (zzgl. MwSt./ex VAT)


C0100286 Yoke Mount for TV Logic Monitor LUM-242H/G/G-AG

Euro 995,00 (zzgl. MwSt./ex VAT)


C0100287 Yoke Mount for Atomos NEON 24“ 4K HDR Cinema Monitor

Euro 995,00 (zzgl. MwSt./ex VAT)


C0100291 Yoke Mount für Atomos NEON 17“

Euro 895,00 (zzgl. MwSt./ex VAT)



Rowa Screen Protector

Screen Protector by ROWA - puhlmann.tv

Acrylic protective glasses:

- 99.5% UV-resistant

- anti-static

- anti-reflective

Acrylic Protective Glass for Monitor TV-Logic 056

Euro   40,50 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic 055A / F-5A

Euro   38,55 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic 058W

Euro   34,55 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic F-7H

Euro   53,30 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic 071

Euro   52,40 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic 074/075

Euro   43,60 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic 091/095

Euro   62,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic LVM 170/172/173/176W

Euro  142,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic LVM 171

Euro  139,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic XVM 175

Euro  118,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor TV-Logic LVM 245W/246W

Euro  270,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor SmallHD 503

Euro  36,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor SmallHD 702

Euro  41,70 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor SmallHD 703

Euro  48,90 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor SmallHD 1303

Euro  62,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony OLED PVM-A250

Euro  232,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony OLED PVM 2541

Euro  245,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony OLED PVM-A170

Euro  118,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony OLED PVM 1741

Euro  142,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony LMD 240A

Euro  236,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sony LMD 2450

Euro  260,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Panasonic BT-LH 1710/1760

Euro  118,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Swit 9"

Euro  55,30 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor ViewZ VZ-215PM-P

Euro  275,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor JVC DT-17 L3D

Euro  118,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor

Euro  238,00 (zzgl. MwSt./ex VAT)

Acrylic Protective Glass for Monitor Sound Devices PIX 240

Euro  63,15 (zzgl. MwSt./ex VAT)


SWIT S-1053F-KIT, 5,5" FullHD 2k OnCamera Display Paket

9SWS-1053F-KIT

Key Features:

  • Pixel: 1920x1080
  • Viewing Angle H/V : 160
  • Contrast : 1000:1
  • Brightness : 400cd/m2
  • Inputs :
  • 1x 2k,3G,HD/SD-SDI
  • 1x lockable HDMI
  • Input Voltage : 12V or 7,2V DC-in
  • Dimensions :  151×91×32mm
  • Weight : 0,37kg

Specials :

  • Waveform
  • Vectorscope
  • R/G/B/Y Histogram,
  • Loop Through Output 2k,3G,HD/SD-SDI
  • Metal Housing,
  • 16-ch embedded Audio via HD-SDI
  • 8-ch embedded Audio via HDMI,
  • Optical Bonding LCD Panel
  • HDMI to HDSDI Conversion,
  • Peaking Focus Assist
  • Timecode Display
  • H/V Delay
  • Zebra,
  • multiple Marker
  • One-Key Menu
  • False Color,
  • R/G/B mono
  • 100% Colorbar
  • USB Firmware upgradeable

Luxury Version incl.

  • 1x Hard-Case
  • 1x DC to D-Tap Cable,
  • 1x DV Battery Plate
  • 1xOffset Bracket
  • 1x lock-HDMI-Cable
  • 1x foldable Sunhood,
  • 1x flannelette bag
  • 1x Instruction Manual

Euro 1.080,00 (zzgl. MwSt./ex VAT)


SWIT S-1073F, 7" FullHD 2k OnCamera Display

9SWS-1073F

Key Features:

  • Pixel: 1920x1080
  • Viewing Angle H/V : 160
  • Contrast : 1000:1
  • Brightness : 400cd/m2
  • Inputs :
  • 1x 2k,3G,HD/SD-SDI
  • 1x lockable HDMI
  • Input Voltage : 12V or 7,2V DC-in
  • Dimensions :  180x120x33mm
  • Weight : 0,61kg



Specials :

  • Waveform
  • Vectorscope
  • R/G/B/Y Histogram
  • Loop Through Output 2k,3G,HD/SD-SDI
  • Metal Housing
  • 16-ch embedded Audio via HD-SDI or
  • 8-ch embedded Audio via HDMI
  • Optical Bonding LCD Panel
  • HDMI to HDSDI Conversion
  • Peaking Focus Assist
  • Timecode Display
  • H/V Delay, Zebra,
  • multiple Marker
  • One-Key Menu
  • False Color
  • R/G/B mono
  • 100% Colorbar
  • USB Firmware upgradeable



  • Luxury Version incl.
  • 1x Hard-Case
  • 1x DC to D-Tap Cable
  • 1x DV Battery Plate
  • 1xOffset Bracket
  • 1x lock-HDMI-Cable
  • 1x foldable Sunhood
  • 1x flannelette bag
  • 1x Instruction Manual




Euro 1.225,00 (zzgl. MwSt./ex VAT)

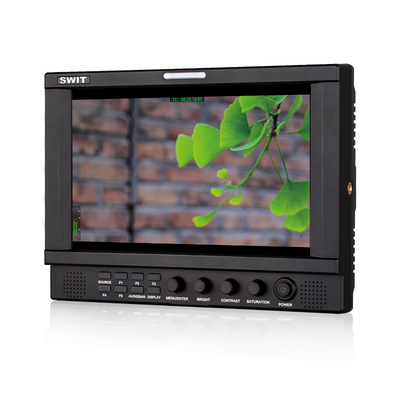

SWIT S-1093H, 9" HD LCD, HDMI, HDSDI / AB-Mount / V-Mount

9SWS-1093H / 9SWS-1093HA / 9SWS-1093HS

The S-1093H / HA / HS adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

Key Features:

  • 9” IPS LCD, 1920×1200, H/V 170°viewing
  • Build-in LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 2-ch Embedded audio meters with alert
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Front / Rear TALLY light and GPI control
  • V-mount, Gold mount or snap-on DV mount
  • USB firmware upgrade

Input/Output Interfaces:

  • SDI / HDMI / CVBS / Analog Audio
  • S-1093H monitor supports:
  • 2K/3G/HD/SD-SDI input × 2
  • 2K/3G/HD/SD-SDI loop output × 2
  • HDMI input × 1
  • HDMI loop output × 1
  • CVBS input × 1
  • CVBS loop outputt × 1
  • 3.5mm analog audio input × 1
  • 3.5mm analog audio output × 1

Euro 1.325,00 (zzgl. MwSt./ex VAT)

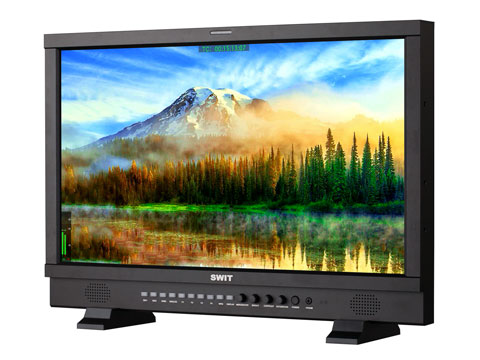

SWIT S-1243HS, 23,8" FullHD Broadcast 2k Display, V-Mount

 9SWS-1243HS



Key Features:

  • Resolution: 1920x1080 Pixel
  • Viewing Angle H/V: 178/178
  • Contrast: 1000:1
  • Brightness: 250cd/m2
  • Inputs:
  • 2x 2k,3G,HD/SD-SDI
  • 1x HDMI
  • 1x Composite
  • 1x VGA,
  • 1x CVBS
  • 1x RS485
  • 1x RS232C
  • 1x RS485 GPI
  • 1x analog Audio
  • Input Voltage: 12V DC-in or 14,4V DC via V-Mount Plate
  • Dimensions: 576×387×87mm
  • Weight: 7,20kg

Euro 1.690,00 (zzgl. MwSt./ex VAT)


SWIT S-1173HS, 17,3" FullHD Broadcast 2k Display, V-Mount

9SWS-1173HS



Key Features:

  • Resolution : 1920x1080 Pixel
  • Contrast : 700:1
  • Brightness : 300cd/m2
  • Inputs :
  • 2x 2k,3G,HD/SD-SDI,
  • 1x HDMI,
  • 1x Composite,
  • 1x VGA,
  • 1x CVBS,
  • 1x RS485,
  • 1x RS232C,
  • 1x RS485 GPI,
  • 1x analog Audio
  • Input Voltage : 12V DC-in or 14,4V via V-Mount
  • Dimensions : 430×310×73mm
  • Weight : 4,65kg



Including:

  • 1x Power Supply,
  • 1x V-Mount Plate,
  • 1x Instruction Manual (english),
  • 1x Desktop Stand Feet,
  • 1x 19" Rack Mount Bracket



Specials:

  • 2-ch SDI embedded Audio
  • UMD and Tally TSL 3.1/4.0
  • Peaking Focus Assist
  • False Color
  • Timecode LTC and VITC1&2
  • Zebra, R/G/B mono
  • H/V delay
  • Active Format Description,
  • Software upgradeable
  • multiple Markers
  • 3-color Tally
  • GPI Interface and Control
  • UMD Interface and Control




Euro 1.400,00 (zzgl. MwSt./ex VAT)


SWIT S-1223HS, 21,5" FullHD Broadcast 2k Display, V-Mount

9SWS-1223HS

Key Features:

  • Resolution : 1920x1080 Pixel
  • Viewing Angle H/V: 178/178
  • Contrast : 1000:1
  • Brightness : 250cd/m2
  • Inputs :
  • 2x 2k,3G,HD/SD-SDI
  • 1x HDMI
  • 1x Composite
  • 1x VGA,
  • 1x CVBS
  • 1x RS485
  • 1x RS232C
  • 1x RS485 GPI
  • 1x analog Audio
  • Input Voltage : 12V DC-in or 14,4V DC via V-Mount Plate
  • Dimensions : 525×358×87mm
  • Weight : 6,20kg



Including:

  • 1x Power Supply
  • 1x V-Mount Plate
  • 1x Instruction Manual (english)
  • 1x Desktop Stand Feet



Specials:

  • 2-ch embedded Audio via HD-SDI or HDMI
  • UMD and Tally Display TSL 3.1/4.0
  • Peaking Focus Assist,
  • Timecode Display LTC and VITC1&2
  • False Color, Zebra, R/G/B mono,
  • H/V delay
  • Active Format Description
  • Software upgradeable
  • Scale Markers 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • 3-color Tally
  • GPI Interface and Control
  • UMD Interface and Control




Euro 1.560,00 (zzgl. MwSt./ex VAT)


VFM-055A  5.5” Full HD Viewfinder

The VFM-055A is a 5.5-inch OLED (organic LED) on-camera view nder monitor with native 1920x1080 reso- lution. It offers truly cinematic image quality with deep blacks, wide-gamut color reproduction, a very wide viewing angle, and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions in- clude cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output, waveform and vec- tor scope, markers, focus assist, audio level meters and more.

• 5.5” Full HD Resolution (1920×1080 ) • OLED (Organic LED)

• Luminance up to 350cd/m²

• Contrast Ratio of 17,000:1

• Accurate Color Reproduction

• Camera LUTs support

• HDMI ↔ SDI cross conversion

• Built-in battery bracket (Sony L-series)

• Various optional Accessories

• Firmware update by USB Stick

• TVLogic Color Calibration Utility • Audio Level Meter Display

• Luma(Y') Zone Check

• Key Lock

• H/V Delay

• Time Code Display

• Various Scan Modes

• Waveform / Vectorscope

• Zoom

• Marker

• Mono

• Range Error

• User Aspect



• Size: 5.5"

• Resolution: 1920×1080(16:9)

•Pixel Pitch: 0.063(H)×0.063(V)mm

• Color Depth: 16.7M

• Viewing Angle (Typ.): 160o(H)/160o(V)

• Luminance (Max.): 350cd/m²

• Contrast Ratio: 17,000:1

• Display Area: 121.4(H)×68.3(V)mm


Euro 1.350,00 (zzgl. MwSt./ex VAT)
