NEW Lindsey Optics Large Format Directors Viewfinder

Puhlmann Cine - Lindsey Optics Large Format Directors Viewfinder

Formats including Super-35, Full Frame, Monstro-8K and Alexa-65

Our new Large Format Optical Viewfinder (LF) provides optical through the lens viewing. With a sleek, modular design, it supports an unprecedented range of formats from Super 35 to Alexa 65.



At the heart of the LF Viewfinder design are interchangeable modules for quick and easy tool-free format changes. With a push of the red button, each module slips in and out of the LF body and securely nests in place. Included in the LF package are 3 modules: Large Format (ARRI Alexa 65 and RED Monstro 8K), Full Frame (Sony Venice) and Super 35.



The LF is designed for intuitive and comfortable balance regardless of changing loads. The contoured oak Handle offers a firm and comfortable grip while the Handle Pivot knob activates rosette adjustment. When needed, the included Handle Extension with dovetail slide facilitates center of gravity refinement. An adjustable Kipp arm secures the Handle Extension to the Viewfinder.



The LF Viewfinder features an LPL lens mount and includes an LPL to PL adapter. The Eyepiece provides diopter adjustment from -4 to +4.

There are 1/4-20 attachment points at the base of the viewfinder, base of the handle extension and Oak handle base.



Lindsey Optics’ Large Format Viewfinder ships complete with the Viewfinder, 3 modules, 3 ground glasses, Oak Handle and Handle Extension—all in a fitted carrying case.

Euro 9.695,00 (zzgl. MwSt./ex VAT)


DENZ OIC FF Director´s Viewfinder

DENZ OIC FF - Director‘s viewfinder for full frame lenses

by request reversible to anamorphic lenses- Full-Frame-Plus coverage

  • Interchangeable mount system with LPL and PL mounts immediately available, others to follow
  • Eyepiece with +/-4 diopter adjustment and long eye relief
  • Easily swappable anamorphic de-squeezer module
  • New DENZ ground glasses -- sturdy and acetone-safe
  • Ergonomic, universal cherry wood handgrip with DENZ soft-touch coating and slip-proof quick-adjustment Hirth pivot-hinge for ideal comfort adjustment
  • Special bracket (made from Konstructal AW7075) anodized, used for balance point optimization through three "variable" attachment points -1/4“-thread at the bottom of the handgrip for monopod-use

OIC FF Director´s Viewfinder, eyepiece, leather shoulder strap, including shift to anamorphic lenses (C0100002)

Euro 14.950,00 (zzgl. MwSt./ex VAT)

OIC FF: Shifting to anamorphic lenses, modul incl. glass 2.0:1 (spare part) (C0100157) Euro 2.430,00 (zzgl. MwSt./ex VAT)
OIC FF: Shifting to anamorphic lenses, modulincl. glass 1.5 : 1 (C0100154) Euro 2.430,00 (zzgl. MwSt./ex VAT)
PL-Mount for OIC FF (C0100013) Euro 1.296,00 (zzgl. MwSt./ex VAT)
LPL-Mount for OIC FF (C0100014) Euro 1.296,00 (zzgl. MwSt./ex VAT)
Panavision SP70-Mount for OIC FF (C0100126) Euro 1.296,00 (zzgl. MwSt./ex VAT)
Ground glass for OIC FF, LF Open Gate (C0100019) Euro 535,00 (zzgl. MwSt./ex VAT)
Ground glass for OIC FF, Combination LF16:9 and 2.39:1 (C0100020) Euro 535,00 (zzgl. MwSt./ex VAT)

Ground glass for OIC FF, customized version

format specification by customer, delivery time 6-8 weeks after PO



Ground glass for OIC FF, blank (C0100066)

Euro 211,00 (zzgl. MwSt./ex VAT)

Ergonomic, universal handle with DENZ-soft-touch coating (C0100010)

Euro 810,00 (zzgl. MwSt./ex VAT)

Special bracket (C0100017)

Euro 470,00 (zzgl. MwSt./ex VAT)

Leather shoulder strap (spare part) (C0100104)

Euro 70,00 (zzgl. MwSt./ex VAT)

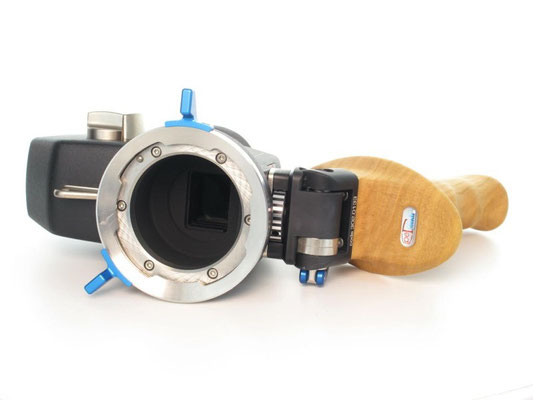

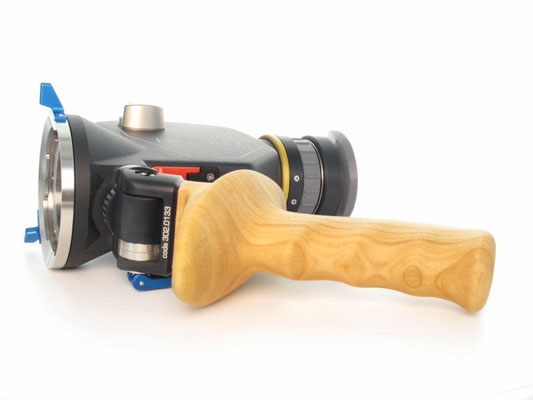

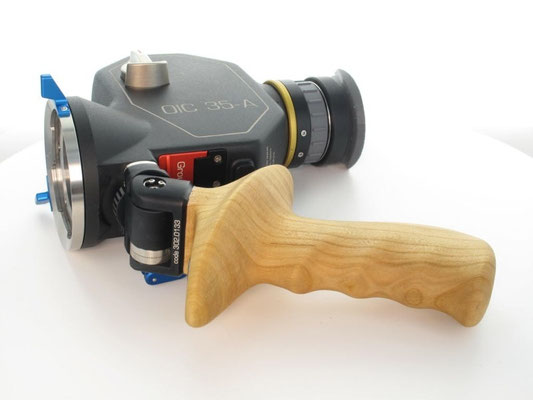

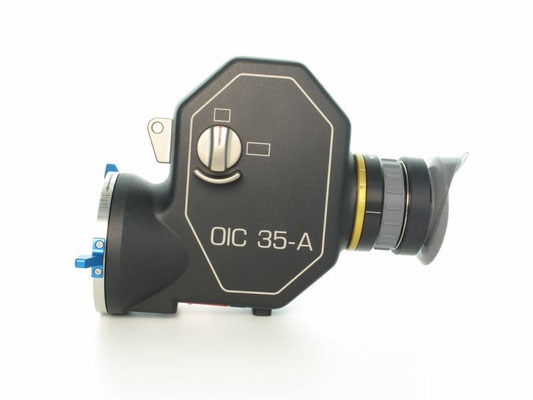

DENZ Director’s Viewfinder OIC 35-A

puhlmann.tv - DENZ Director´s Viewfinder OIC-35-A

Director's Viewfinder for anamorphic or spherical lenses (C0100295)

The DENZ OIC 35-A (Optical Image Control) is an indispensable tool for any director, cameraman or gaffer.

Many features make it your first choice:

reversible anamorphic / spherical

  • available with PL- or Panavision-Mount
  • snapable eyepiece with diopter adjustment ± 5.0
  • prepared for ARRIFLEX-Groundglasses 435/535
  • ergonomic universal handle with DENZ-soft-touch coating
  • integrated pivot-hinge with clamping unit for an ideal adjustment of the handle
  • ¼“-thread at the handle’s bottom for monopods
  • mini bridge plate for balancing of heavy lenses
  • Panavision-Mount on request
  • Handle has to be ordered separately

Euro 7.776,00 (zzgl. MwSt./ex VAT) PL-Version (C0100004)



Euro 8.100,00 (zzgl. MwSt./ex VAT) PV-Version (C0100295)

Ergonomic, universal handle with Denz-soft touch coating  (C0100010) Euro 810,00 (zzgl. MwSt./ex VAT)
Special bracket (balancing for heavy lenses) (C0100017) Euro 470,00 (zzgl. MwSt./ex VAT)
Leather shoulder strap (spare part) (C0100104) Euro 70,00 (zzgl. MwSt./ex VAT)

DENZ Director’s Viewfinder OIC 35 Pentafinder

puhlmann.tv - DENZ Director´s Viewfinder OIC 35

The DENZ Director’s Viewfinder OIC-35 (Optical Image Control) is an indispensable tool for any director, cameraman or gaffer.

Many features make it your first choice:

  • super 35mm ground glass (not available at DENZ) arri 435/535
  • Eyepiece with a linear extension (diopter -4 / +3.5) for right and left viewing
  • Ergonomically designed handles for right and left, as well as the Universal-Handle made from olive wood.
  • The handles are designed so that the weight of the OIC-35 is distributed on the thumb and index finger, not the hand.
  • Articulation for ideal adjustment of the handle
  • ¼“ threaded hole on the underside of the handle for a monopod
  • Adjustable balance point thanks to a mini support plate
  • Panavision-Mount on request
  • Handle has to be ordered separately

Euro 4.970,00 (zzgl. MwSt./ex VAT) PL-Version (C0100009)

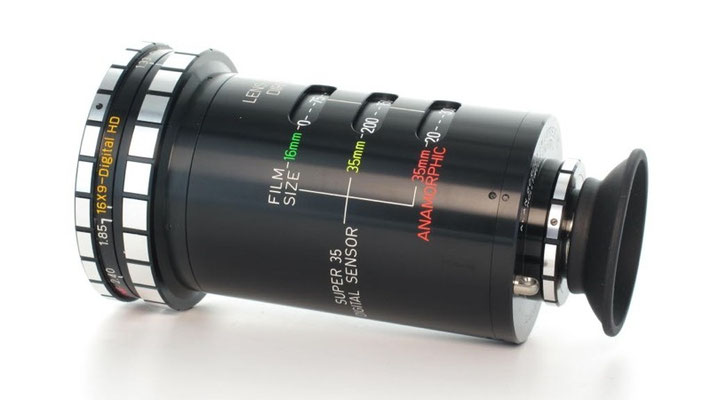

Alan Gordon Mark Vb Director´s Viewfinder

The Mark Vb Director's Viewfinder accurately defines choice of lenses, angles and coverage in a wide variety of formats for both film and video. It enables filmmakers to communicate their visions to each other quickly and with complete accuracy, allowing the time saved to be used on the art of filmmaking.

Manufactured by Alan Gordon Enterprises, the Mark Vb is the latest version of the Academy Award Winning Mark V and continues to be the choice of Film and Video makers worldwide. The Mark Vb has all the features of the Mark V plus new markings on the Aspect Ratio ring, making it easer to read for both film and video use. We also eliminated the 1/2 " video window and replaced it with the current video chip standard of 2/3." Film sizes and video formats are color-coded for quick reading.



Super 35 sensors

The Mark Vb Directors viewfinder will give you readings for a number of digital sensors within 10% of a given lens focal length. To achieve this, set the aspect ratio ring to 16X9 and read the 35mm window. The finder is now set for Super 35 and this setting is also true for the following digital camera sensors: Arri Alexa, Sony F35 PL, Sony F65, Red Epic-X, Red Scarlet, Red One, Canon 7D, and the Phantom HD Gold.



12:1 Zoom Ratio Ring

Smooth zooming from wide angle to telephoto. Focal lengths are viewed in windows located on the barrel of the viewfinder. The zoom range for the various formats is as follows:

Film Video
16mm film: 8.5-100mm
Super 16 film: 10.5-125mm
35mm film: 18-200mm
35 Anamorphic film: 35-420mm  Video
2/3" video: 8.5-75mm



Adjustable Aspect Ratio Ring

You may adjust the viewfinder to te aspect ratio that is appropriate for you film or video application. Available aspect ratios are: 1.33:1 standard TV, 16x9 HDTV, 1.85:1 standard 35mm ratio and 2.40:1 anamorphic wide screen, also known as Panavision or Cinemascope.



Color Coding

Film sizes and video formats are color-coded for quik reading.

Adjustable Focusing Ring & Rubber Eyecup

The eypiece focusing ring can be adjusted to sharpen the image at any given setting, much like the viewfinder adjustment on your camera. The collapsed rubber eyecup prevents scratching your glasses.



Specifications

  • Weight: 14.5 oz. (0,4kg)
  • Length: 4-5/16" (125mm)
  • Front lens diameter: 2-1/4" (58mm)
  • 6 optical coated glass elements
  • Black, anodized exterior finish
  • Chrome trim

Alan Gordon Mark Vb Director´s Viewfinder



Euro 799,00 (zzgl. MwSt./ex VAT)

Additional Accessories for Mark Vb:

Wide-Angle Attachment (now covers 10mm at 35mm format)

Euro 125,00 (zzgl. MwSt./ex VAT) -phase out

Belt Holster Case

Euro 30,00 (zzgl. MwSt./ex VAT)

Replacement 58mm lens cap

Euro 8,00 (zzgl. MwSt./ex VAT)

Replacement Rubber Eyecup

Euro 7,00 (zzgl. MwSt./ex VAT)

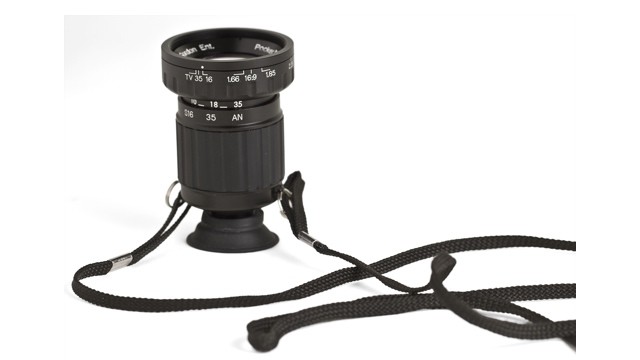

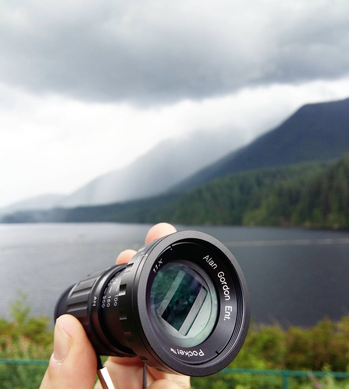

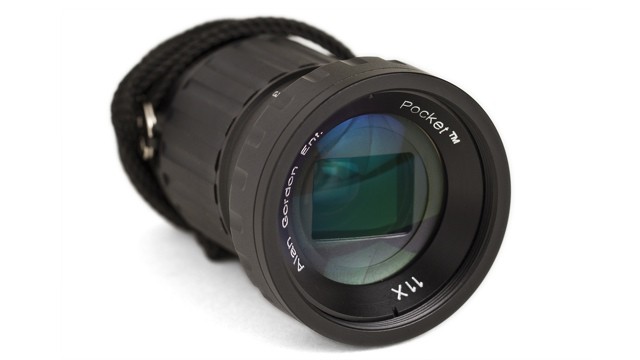

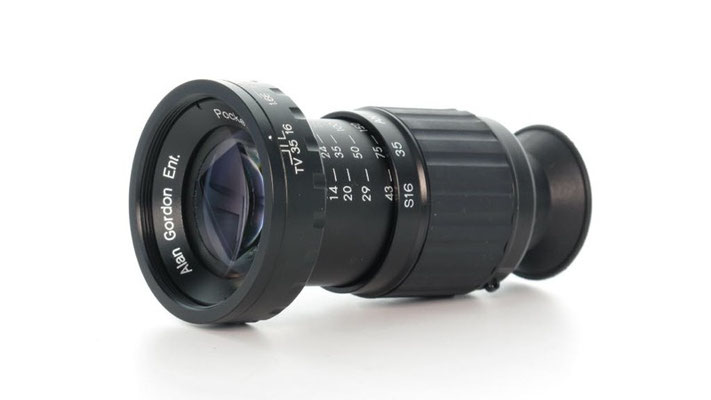

Alan Gordon Pocket Mini Director’s Viewfinder

Puhlmann Cine - Viewfinder

The Pocket Mini 11:1 Director’s Viewfinder is one of the lightest and most compact models of the Viewfinders sold through Alan Gordon Enterprises, Inc. Designed for the budget conscious filmmaker & to meet today’s requirements for both theatrical motion picture and television production.

Specifications:

  • Aspect Ratios: TV (4:3), 1.66, 16:9, 1.85, 2:35, 2.55
  • S16 range: 10mm – 114mm
  • 35mm range: 18mm – 200mm
  • Anamorphic range: 35mm – 400mm
  • 1/3″ sensor range: 3.9mm – 44mm
  • 1/2″ sensor range: 5.2mm – 58mm
  • 2/3″ sensor range: 7.2mm – 80mm
  • Weight 0.5 lbs
  • Dimensions 4 x 2 x 2 in

Euro 178,00 (zzgl. MwSt./ex VAT)


UDF Anamorphic Ultimate Director's Finder

Puhlmann Cine - UDF Anamorphic Ultimate Director´s Finder

UDF Anamorphic Ultimate Director's Finder by Kish
- Interchangeable lens mounts – PL, PV, EF, Nikon mounts
- Spherical and Anamorphic Viewing – Optional Modular 2x De-squeezer
- Ergonomically designed Pivoting Handle Grip aiding Counterbalance

- Adjustable Eyepiece/Diopter plus optional video tap capabilities

- Easy toggle system between Regular and Anamorphic Viewfinder

Ergonomically designed viewfinder system that offers Anamorphic and Spherical Capabilities, interchangeable lens mounts, video tap and more.



Euro 7.500,00 (zzgl. MwSt./ex VAT)

UDF Ultimate Director's Finder, S35 version

Puhlmann Cine - UDF Anamorphic Ultimate Director´s Finder

UDF Ultimate Director's Finder, S35 version by Kish
- Interchangeable lens mounts – PL, PV, EF, Nikon mounts
- Spherical Viewing
- Ergonomically designed Pivoting Handle Grip aiding Counterbalance

- Adjustable Eyepiece/Diopter plus optional video tap capabilities



Ergonomically designed viewfinder system that offers Spherical Capabilities, interchangeable lens mounts, video tap and more.



Euro 4.400,00 (zzgl. MwSt./ex VAT)

Ground Glass for Kish Ultimate Directors Finder:



- Ground Glass UDF 2,39 1,78 Anamorphic (Alexa)
- Ground Glass UDF 2,39 Anamorphic (Alexa)
- Ground Glass UDF 2,40 Anamorphic Digital (21.384x17.820)
- Ground Glass UDF 1,78 (Alexa)
- Ground Glass UDF 1,85 Alexa (S35)
- Ground Glass UDF 1,85 Alexa (S35)
- Ground Glass UDF 2,39 (Alexa)
- Ground Glass UDF Digital SHDTV TV FAC



Euro 459,00 each (zzgl. MwSt./ex VAT)


Optica Magnus Full Frame Director's Finder

Optica Magnus Full Frame Director's Finder

- Use up to 10 different lens mounts with P+S IMS system.

- Spherical and anamorphic capabilities.

- Lightweight and extreme bright system (minimum light loss).

- Create your customized Frame Lines by using a provided app and print this on Acetate slides.

- Eyepiece changeable for Super35 and Full Format view.

Euro 9.900,00 (zzgl. MwSt./ex VAT)
