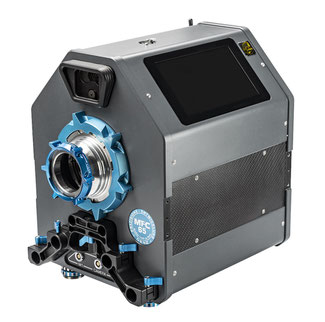

Remote Projector for Medium Format Lenses

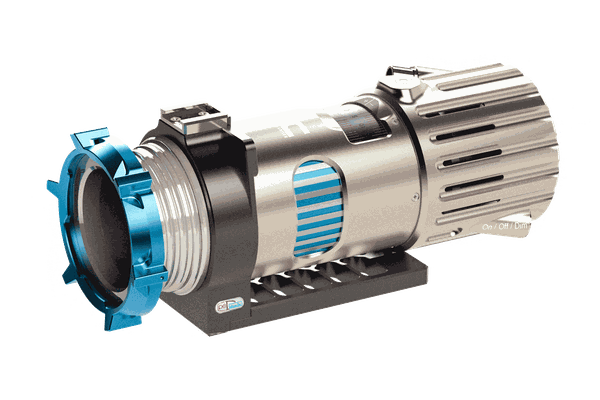

The DENZ MFC 65 projector is a high-end product for all cine and photo lenses having image circles of up to Ø60mm. It is made for industrial and rental applications and is ready for use 24/7 immediately after start-up
The MFC 65 offers the Denz Basic Mount having an extremely short flange focal depth of 10mm, which allows adaptation of all common mounts in cinema and photo. The current offering of lens mount adapters is among the most diverse in the industry and includes standard PL, Arri LPL, Arri XPL-60, Sony-E, Canon EF and Panavision. A special Arri LPL adapter allows for rotation of the lens for especially critical aberration analysis, and datamount versions are also in development.
302.0144 & 302.0145

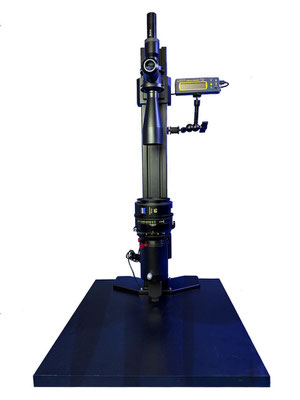

KING PETER is a computer aided optical measurement system for control surveys of professional video cameras. For sharpest images with the actual high-end cameras and objectives, even more with future >4k models, new measurement equipment is needed. In this respect KING PETER is an extension of successful FDC, our optical measurement device for flange depth.
KING PETER provides exact measurements of the image sensor’s position in digital cameras—including the exact center, rotation around the optical axis, and any deviation of the chip relative to a perpendicular image plane. KING PETER can measure the location of the actual pixels to make the result significant.
For measutring of nearly every type of cameras you can fit high presicsion measuring adapter made of stainless steel. With KING PETER and the appropriate flange you can measure cameras with flanges below:
All adapters come with two protection caps.

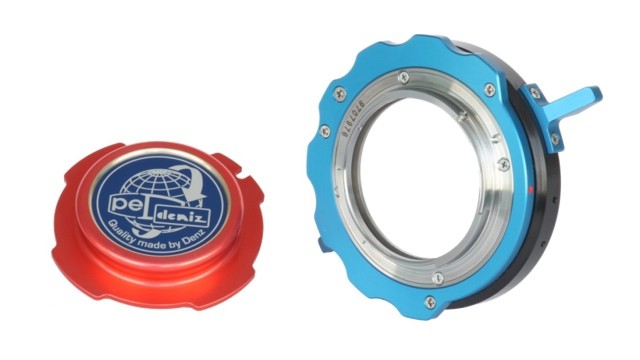

With these adapter rings for FDC multi , it is possible to measure the flange distance of cameras with Canon EF-mount, Sony E-Mount, MFT– or F-Mount mount with the same accuracy, well-known from the FDC. So it is possible to use the FDC multi even more effective, because you can control the focal flange distance of more camera types.
With the high-precision adapter rings, you can measure the flange distance as easy as usual: First, set the corresponding ring onto the FDC multi. Then set the FDC multi with the the adapter ring onto the camera. Now you can perform your measurements with the FDC.
Adapter Ring FDC-Multi for Canon EF-Mount
Adapter FDC-Multi for MFT-Mount
Adapter FDC-Multi for Sony E-Mount
Adapter FDC-Multi for Nikon F-Mount
With these adapter rings for FDC multi , it is possible to measure the flange distance of cameras with XPL-Mount (Alexa 65) or XPL-52mm-Mount (Vantage-modification).
With the high-precision adapter rings, you can measure the flange distance as easy as usual: First, set the corresponding ring onto the FDC multi. Then set the FDC multi with the adapter ring onto the camera. Now you can perform your measurements with the FDC.
Arri-XPL-Adapter for FDC-multi
XPL-52mm-Adapter for FDC-multi

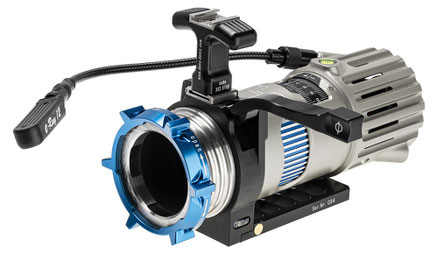

The DENZ PLC is a LED projector for checking the resolution and the focal length of lenses right up to the full format.
A precisely positioned new test slide can be used to check the focal length of the lens. For this, the position is read directly from the dial to <0.01mm.
Likewise, sharpeness of the center / edge, image distortion, homogeneity, lens marking of the distance and “pumping” can be tested in analogy to a commercially available stand projector.
The DENZ chart offers classical linepairs (from 12-200lp / mm) and Siemens star, where the image resolution is directly readable – even anamorphic 2: 1!The DENZ chart incorporates all modern sensor sizes: 1 “, MFT, APS-C, Super35, RED Helium, full format. Despite all compactness, great importance is placed on user-friendliness and usability.
For dark test rooms, there is a working light (gooseneck lamp with 20cm/7,87”) included and the leveling lantern is illuminated. Additional equipment can be attached to the flash shoe, while the standard 24V power supply reliably hangs on the tripod. The DENZ PLC can be screwed to three ¼ “ threads on the bottom, providing the necessary stability for heavy lenses. As an optional accessory, DENZ offers the support system DAVID or the DENZ DSLR support. A solid carrying handle completes a comfortable handling.
PLC PL – Portable Lens Checker for PL-lenses
PLC – Calibrating Set

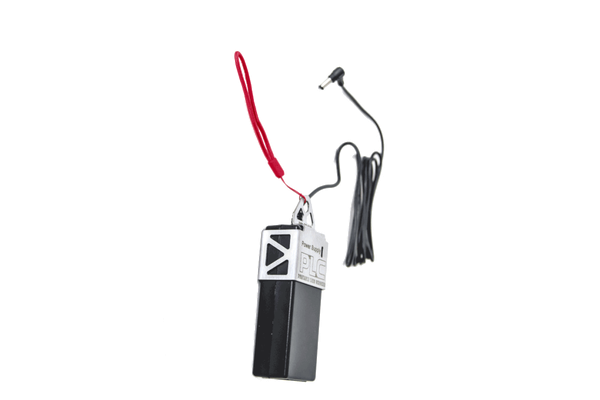

PLC – Power supply unit (spare part)
PLC E – Portable Lens Checker for Sony E-lenses
PLC – Handle

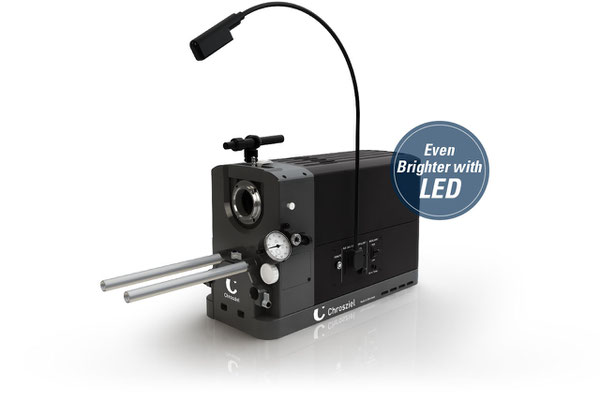

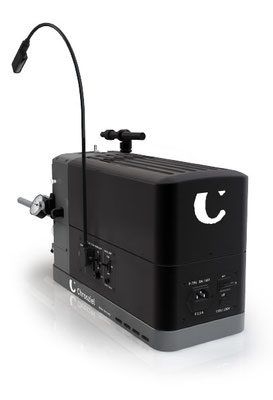

LED Lens Testing Projector MK6 for all established formats.
With the new Chrosziel Lens Testing Projector MK6, the flange focal distance of your camera lenses can be professionally checked. The projector also allows a visual check of a variety of parameters that make a statement on the quality of the checked optics. Our new projector combines new, ergonomic design with a variety of new features. The proved and tested functionality of the predecessor model has been taken into account in the development of the MK6 and rendered more precisely.
A variety of mounts with glass way for SD and HD, as well as for the various photographic and film lenses are available. We are happy to produce according to customer requirements. The provided remote control allows you to stay close to the projector screen at an optimum viewing distance and focus the image. Compatible with all established Lens Control Systems.
Highlights and technical details:
- New comfortable, ergonomic design
- Optimal illumination by bright LED light with 5000 K color temperature
- Integrated rod clamp for Ø15 mm and Ø19 mm rods
- New rotary switch for adjusting the dia position
- 2-step regulator for adjusting the light source (low/high)
- Plane Glass, mounted in slide holder
- Eclair C-Mount as base mount for all other mounts (e.g. Arri, PL, Canon, Nikon…)
- Low voltage orientation lamp on goose neck with XLR plug
- Mains supply switchable 115 / 230 volt AC
- Adjustment range for measurement of the back focal length: ± 1.3mm
- Cable-connected Remote Control

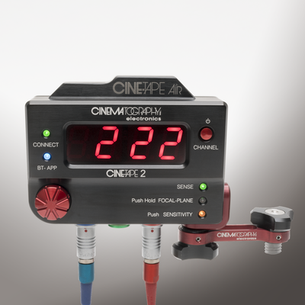

The industry standard CINETAPE MEASURE has been redesigned and now includes built-in wireless communication. The new Cinematography Electronics CINETAPE 2, is smaller, lighter and faster. Same great features and quality, plus more.
The CINETAPE 2 Control is lighter and smaller than the original CINETAPE. It continuously calculates the distance between the camera’s film plane and the subject. All of the original CINETAPE features are included in the CINETAPE 2. In addition, we added a 2-way wireless radio, that communicates with our AIR Mobile 2 at a strong 500 foot range. We also added BlueTooth compatibility which connects the CINETAPE 2 to an iPhone, via the CineTape Air App. Our App adds many additional features to the new CINETAPE 2.
The CineTape 2 has a variety of camera mounting options. In addition to the dovetail-mounting slot, we have added two ¼-20 threaded mounting holes, 90 degrees apart. These holes and our new lightweight Mini Dogbone Bracket provide numerous attachment possibilities.
CINE TAPE MEASURE SYSTEM 2
(Price includes: CineTape 2 Control, Horn Assembly, and a Sensor Cable)
Cable, Sensor - Straight, Fischer 5 (spare)
Cable, Sensor - Right Angle, Fischer 5 (spare)
Cable, Power - Arriflex, Fischer 3
Cable, Power - Arriflex, Fischer 11
Cable, Power - Aaton, Lemo 8
Cable, Power - Panavision, Lemo 2
Cable, Power - RED Camera, Lemo 4
Cable, Power - RED Camera, P-Tap (Anton Bauer)
CineArm, Articulating Support Arm, NOGA (3/8-16 to 1/4-20)
Pelican Carrying Case custom made

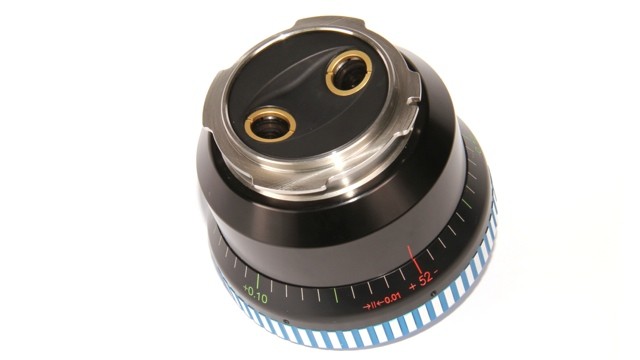

The DENZ FDC classic tests the flange back of digital video cameras with PL-Mount (e.g. RED ONE, Sony F55, ARRI D-20/21/Alexa, Phantom HD, Weisscam HS-2). An absolute must for all those who work with precisely adjusted cameras.
The application is very simple and asks the user only for the ability to move a line by means of a hand wheel so that it comes to lie exactly in the middle between two beams. With the DENZ FDC classic, controlling micrometers is that simple.
The DENZ FDC classic is delivered in a well-padded carrying case, together with documentation, battery, cap and international power supply

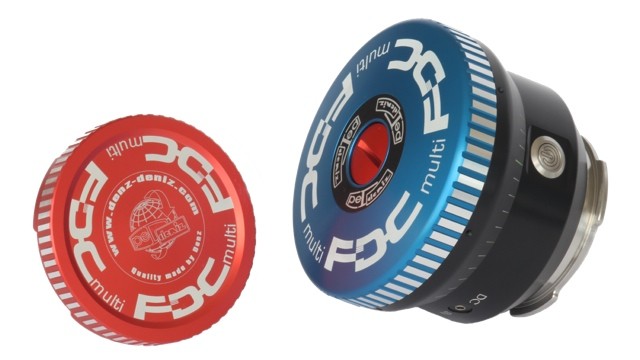

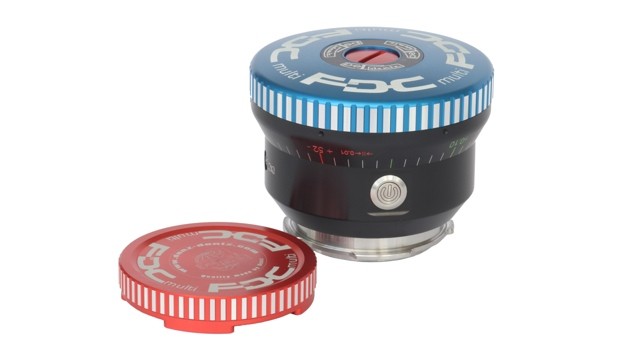

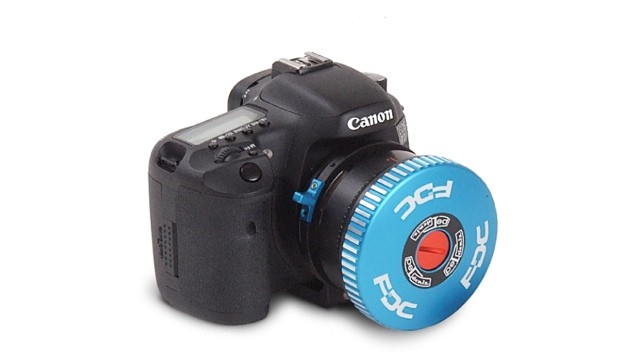

The FDC multi measures the flange focal distance of digital video cameras with Ø 54 mm PL mount, e.g. RED One, Sony F35, ARRI D-20/21/Alexa, Phantom HD, Weisscam HS-2 and also supports cameras with Canon EF mount, by means of an optional DENZ adapter ring. As one of the most popular DENZ products worldwide the FDC-multi is a must have for everybody, who prefers working with exactly adjusted cameras. International leading camera manufactures are using this measurement tool to calibrate their cameras before delivery.
For stationary use, e.g. in a studio, the FDC multi can be powered by a mains adapter (AC/DC:in: 100-240V; 50-80 Hz; 300 mA // out: 5V; 1.5 A) Another possibility is, using the unit with a DC 3V battery which makes the FDC-multi very attractive for an easy handling on set, bringing laboratory accuracy to the field. To save battery power, the FDC-multi has included an automatic power off function.
When the FDC multi is mounted on your camera you can start the measuring procedure.The flange depth of PL mounts can be measured directly. On top of that shorter flange focal distances, like Canon EF/EFS, can be measured with the same accuracy as well by adding the additional EF/EFS adapter. The FDC multi provides a highly accurate connection which does not alter the measurement accuracy. Using the FDC multi with a variety of mounts becomes way more cost effective. Please note, that the adapter does not enable you to use PL lenses on Canon EF/EFS-mounts.
Canon EF Adapter for FDC multi

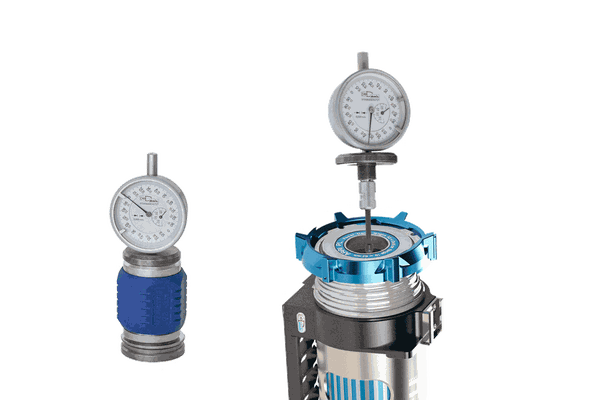

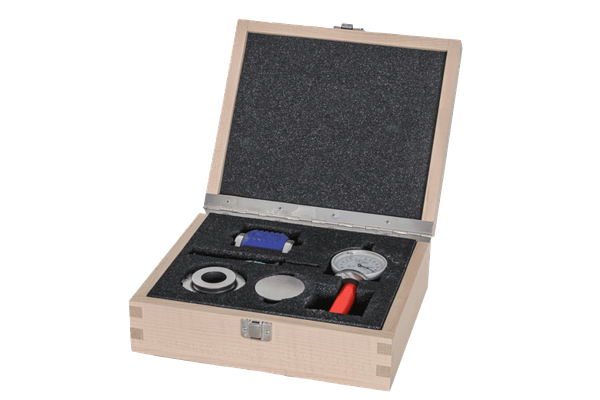

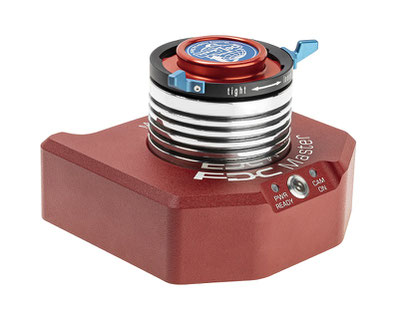

The FDC Master is the embodied Flange Focal Distance. It resembles a camera that is reduced to its least number of parts. Machined with micron accuracy, it is a tool that you can rely on and use to verify the scale on your FDC or recalibrate it.
