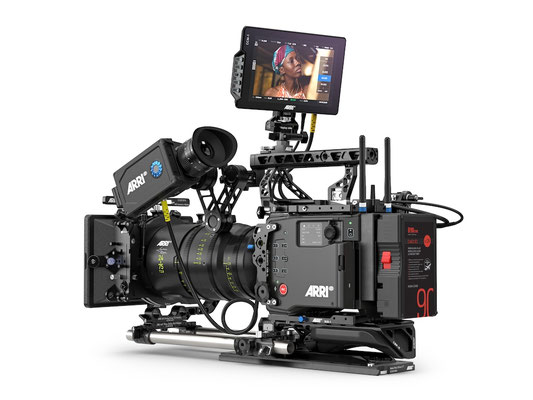

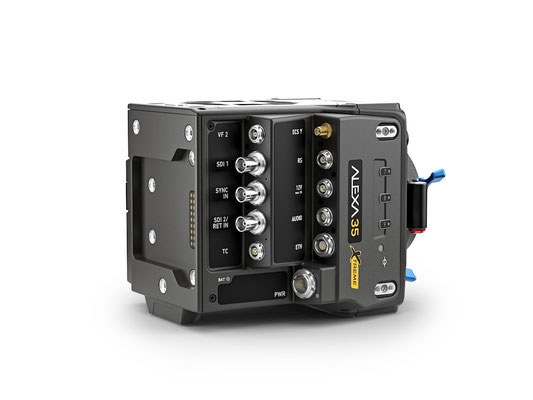

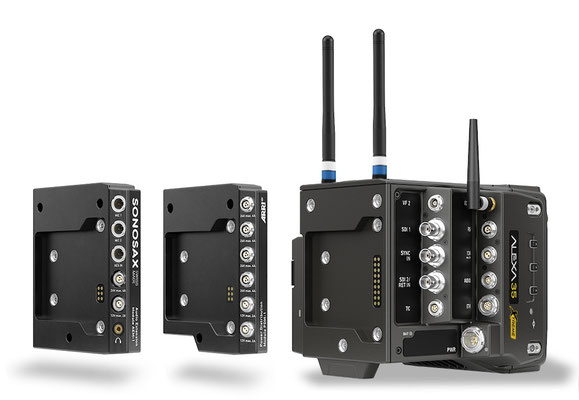

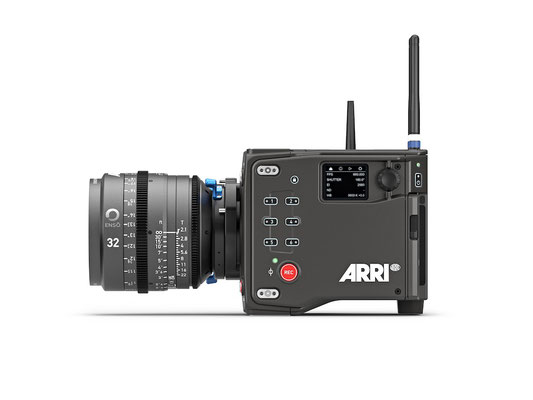

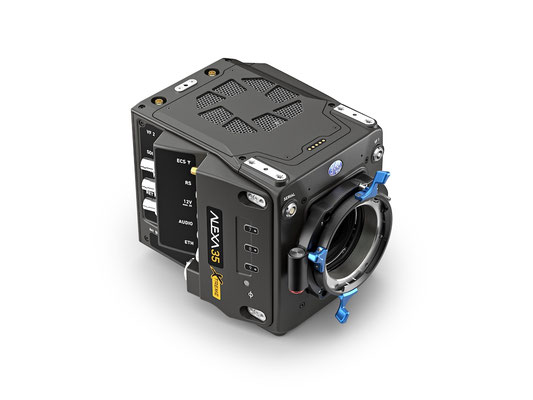

ALEXA 35 is a 4K Super 35 camera that elevates digital cinematography to unprecedented heights. ARRI’s first new sensor
for 12 years builds on the evolution of the ALEXA family over that period, delivering 2.5 stops more dynamic range, film-like
highlight handling, better low light performance, and richer colors.
The new REVEAL Color Science takes full advantage of the sensor’s image quality and provides a fast, simple workflow, while
ARRI Textures enhance in-camera creative control. Easy operation, robust build quality, new electronic accessories, and a
complete new mechanical support system round out the ALEXA 35 platform.

ALEXA 35 Body & ARRI LPL Mount Set K0.0041724

includes:

K1.0039373 1x ALEXA 35 camera body

10.0043678 1x ALEXA 35 Cine License

K2.0034180 1x Balance Utility Dovetail BUD-1

K2.0023751 1x B-Mount Battery Adapter

K2.0018983 1x ARRI LPL Mount (LBUS)

K2.0016936 1x ARRI PL-to-LPL Adapter

Euro 77.300,00 (zzgl. MwSt./ex VAT)

ALEXA 35 Body & ARRI PL Mount (LBUS) Set K0.0042900

includes:

K1.0039373 1x ALEXA 35 camera body

10.0043678 1x ALEXA 35 Cine License

K2.0034180 1x Balance Utility Dovetail BUD-1

K2.0023751 1x B-Mount Battery Adapter

K2.0042651 1x ARRI PL Mount (LBUS)

Euro 75.600,00 (zzgl. MwSt./ex VAT)

ALEXA 35 Production Set (19mm Studio) K0.0048869

The ALEXA 35 Production Set is a camera and support system package that has been designed to suit the workflow of a traditional camera department. This set contains an ALEXA 35 camera with LPL Mount (LBUS), PL-to-LPL Adapter, MVF-2 viewfinder, Camera Control Monitor CCM-1, three Compact Drives, Power Distribution Module PDM-1 and an ALEXA 35 Cine License (ARRIRAW and Open-Gate-width recording formats).

Both lightweight 15 mm and studio 19 mm rod standards are supported on the improved CBP-5 bridge plate and shoulder pad. New accessories such as the fullsize Center Camera Handle CCH-5 and extendable Viewfinder Mounting Bracket VMB-5 offer rock-solid support and rapid reconfiguration possibilities on set.

Euro 97.000,00 (zzgl. MwSt./ex VAT)

ALEXA 35 Production Set (15mm Studio) K0.0048868

The ALEXA 35 Production Set is a camera and support system package that has been designed to suit the workflow of a traditional camera department. This set contains an ALEXA 35 camera with LPL Mount (LBUS), PL-to-LPL Adapter, MVF-2 viewfinder, Camera Control Monitor CCM-1, three Compact Drives, Power Distribution Module PDM-1 and an ALEXA 35 Cine License (ARRIRAW and Open-Gate-width recording formats).
Both lightweight 15 mm and studio 15 mm rod standards are supported on the improved CBP-6 bridge plate and shoulder pad. New accessories such as the fullsize Center Camera Handle CCH-5 and extendable Viewfinder Mounting Bracket VMB-5 offer rock-solid support and rapid reconfiguration possibilities on set.

Euro 97.000,00 (zzgl. MwSt./ex VAT)

ALEXA 35 Lightweight Set K0.0048867

The ALEXA 35 Lightweight Set has been designed for situations where a small, yet comprehensive camera package is preferred. This set contains an ALEXA 35 camera with LPL Mount (LBUS), PL-to-LPL Adapter, MVF-2 viewfinder, Camera Control Monitor CCM-1, three Compact Drives and an ALEXA 35 Cine License (ARRIRAW and Open-Gate-width recording formats).

Lightweight 15 mm rods are supported in the Bridge Plate Adapter BPA-6. An integrated Touch-And-Go 35 interface can be replaced with traditional BP-8 or BP-9 bridge plates for studio rod support. For even smaller packages, the Compact Shoulder Pad CSP-2 offers comfortable, flexible shoulder mounting with the lowestpossible centre of gravity. A lightweight carbon fiber top handle (LCH-1) offers toolless removal and support for a variety of suspension harnesses.

Euro 93.500,00 (zzgl. MwSt./ex VAT)

MVF-2 Viewfinder Set K0.0042899

The MVF-2 is a low latency (≤1 frame delay) electronic color viewfinder with a high contrast OLED viewfinder display

(1920 x 1080) and 4" LCD flip-out monitor (800 x 400). The eyepiece is based on the ARRICAM design and offers high

contrast, low distortion, an evenly illuminated viewing area for a clean image and a wide exit pupil for freedom of movement for the operator. The flip-out monitor can show the image, home screen or camera control menu. The MVF-2 features a built-in eyepiece lens heater for de-fogging and a built-in 3.5mm headphones connector. It is compatible with ALEXA Mini LF and ALEXA 35 cameras and the Heated Eyecup HE-7.

includes:
K2.0020916 1x Multi Viewfinder MVF-2

K2.0042857 2x Cable VF Right Angle (0.5m/1.5ft)

Note: Not compatible with ALEXA Classic cameras, ALEXA Classic cameras with the XR Module upgrade, ALEXA XT cameras, ALEXA SXT cameras, ALEXA LF cameras, ALEXA Mini, AMIRA, MVF-1 cables, and EVF-1/2 cables.

Euro 8.800,00 (zzgl. MwSt./ex VAT)

Codex Media Bundle K0.0043661 -special deal

The Codex Media Bundle combines everything you need get started with a new camera setup. It consists of three 1TB Compact Drives in their individual protective case and a USB-C Compact Drive Reader. Three drives is a good basic kit, as it allows

you to shoot on the first drive with the second ready and waiting to be loaded while the third drive is being offloaded. The USB-C Reader is a versatile unit as it can connect to most workstations and offers fair transfer speed.

Includes:

K2.0024130 3x Codex Compact Drive 1TB (CA08-1024)

K2.0024134 1x Codex Compact Drive Reader (USB-C)

Note: For additional details on the components of this set, please see the individual price list items.

Euro 6.530,00 (zzgl. MwSt./ex VAT)

Codex HS Media Bundle K0.0043662

The Codex High Speed Media Bundle offers best performance at a good price. It is recommended when you put together a new camera setup. The set comes with three 2 TB Compact Drives in their individual protective case and a Thunderbolt 3

Compact Drive Dock. Three drives is a good basic kit, as it allows you to shoot on the first drive with the second ready and waiting to be loaded while the third drive is being offloaded. The Thunderbolt Dock is a fast transfer unit and is recommended for anyone on an intensive shooting schedule. The 2TB Compact Drive offers more recording capacity and higher write speed, particularly for ARRIRAW recording on the ALEXA 35. An ALEXA Mini LF cannot reach higher frame rates with a 2TB Drive.

Includes:

K2.0023447 3x Codex Compact Drive 2TB (CB16-2048)

K2.0034320 1x Codex Compact Drive Dock (TB3)

Note: For additional details on the components of this set, please see the individual price list items.

Euro 14.390,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive 1TB (CA08-1024) K2.0024130

The Codex Compact Drive is designed for use in the ALEXA Mini LF and the ALEXA 35 cameras. The 1TB drive offers 960 GB usable capacity and up to 8 Gbps ( ~950 MB/s) write speed. This is fast enough for any recording format of the ALEXA Mini LF,

but it limits ARRIRAW recording on the ALEXA 35 to approximately 60 fps.

ALEXA 35 recording capacity at 24 fps: 28 min ARRIRAW 4.6K OG; approx. 1hr 45 min Apple ProRes 4444 16:9 UHD

ALEXA Mini LF recording capacity at 24 fps: 32 min ARRIRAW 4.5K OG; approx. 2hrs Apple ProRes 4444 16:9 UHD

Notes:

- For use with the ALEXA Mini LF and the ALEXA 35.

- The Compact Drive 1TB drive is marked with an orange ring.

- Codex Model No: CX.0001002

Euro 2.320,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive Set 3x1TB K0.0024596 -special deal

A set of three 1TB Compact Drives in individual protective cases.

Includes:

K2.0024130 3x Codex Compact Drive 1TB (CA08-1024)

Note: For additional details on the components of this set, please see the individual price list items.

Euro 5.850,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive set 6x1TB KK.0024370 -special deal

A set of six 1TB Compact Drives in their protective cases. Comes with a foam insert for a Peli Case 1120, to allow safe storage and transport of six drives (without the protetive cases). Peli Case not included.

Includes:

K2.0024130 6x Codex Compact Drive 1TB (CA08-1024)

Note: For additional details on the components of this set, please see the individual price list items

Euro 11.100,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive 2TB (CB16-2048) K2.0023447

The Codex Compact Drive is designed for use in the ALEXA Mini LF and the ALEXA 35 cameras. The 2TB drive offers 1920 GB usable capacity and a write speed of up to 16 Gbps (~2000 MB/s). This is fast enough, not to present any limit for the recording

formats of the ALEXA Mini LF ot the ALEXA 35. An ALEXA Mini LF cannot take advantage of higher write speeds.

ALEXA 35 recording capacity at 24 fps: 56 min ARRIRAW 4.6K OK, approx. 3.5 hrs Apple ProRes 4444 16:9 UHD

ALEXA Mini LF recording capacity at 24 fps: 64 min ARRIRAW 4.5K OG; approx. 4 hrs Apple ProRes 4444 16:9 UHD.

Notes:

- For use with the ALEXA Mini LF and the ALEXA 35.

- The Compact Drive 2TB drive is marked with a yellow ring.

- Codex Model No: CX.0001073

Euro 4.320,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive set 3x2TB K0.0040251

A set of three 2TB Compact Drives in individual protective cases.

includes:

K2.0023447 3x Codex Compact Drive 2TB (CB16-2048)

Note: For additional details on the components of this set, please see the individual price list items.

Euro 12.558,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive set 6x2TB KK.0040353

A set of six 2TB Compact Drives in their protective cases. Comes with a foam insert for a Peli Case 1120, to allow safe storage and transport of six drives (without the protetive cases). Peli Case not included.

includes:

K2.0023447 6x Codex Compact Drive 2TB (CB16-2048)

Note: For additional details on the components of this set, please see the individual price list items.

Euro 25.116,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive Reader (USB-C) K2.0024134

Cost effective reader for easy access to a Compact Drive, offering up to 1000 MB/s read speed over USB-C. The reader can be used on macOS and Windows without additional software. Mac users have the option to install the free Codex Device

Manager software.

Includes:

USB-C to USB-C cable.

Notes: Only compatible to Compact Drives. Device is bus-powered over its USB 3.2 Gen 2 interface. 3A power and no shared connection (no hubs!) are required for full speed. The device can be used with a USB3.1 adapter at reduced speed (up to 450

MB/s). This will significantly increase the copy time to about 1hr per 1TB drive. Codex product code: CX.0001005

Euro 660,00 (zzgl. MwSt./ex VAT)

Codex Compact Drive Dock (TB3) K2.0034320

A Thunderbolt-attached high speed dock for fast data transfer from a Compact Drive. Up to 2.5 GB/s read speed over Thunderbolt 3 and 1.2GB/s via Thunderbolt 2. The dock can be used on macOS and Windows without additional software. Mac

users have the option to install the free Codex Device Manager software.

Includes: Thunderbolt 3 cable, external power supply unit.

Note: Only accepts Codex Compact Drives. Requires a Thunderbolt interface. Compatible to Thunderbolt 2 via an Apple Thunderbolt 3/2 adapter. Not compatible to host computers offering only USB-C.

Codex Model No: CX.0001007

Euro 1.830,00 (zzgl. MwSt./ex VAT)
