Fujinon’s Premista Zooms

Puhlmann Cine - Fujinon's Premista Zooms

Named the Premista, the pair of new zooms will be a 28-100mm T2.9 and an 80-250mm T2.9-3.5 will feature a large image circle spec of 46.3mm. Both zooms have a T2.9 maximum aperture, however the longer zoom will ramp gradually between 200 and 250mm. The 80-250mm will begin shipping before the end of 2019, no price confirmed just yet. The shipping for the 28-100mm will be in Summer 2019.







Focal Length

Aperture

Lens Mount

Image Circle

Close Focus

Focus Rotation

Zoom Rotation

Iris Rotation

Iris Blades

Front Diameter

Length

Weight

28-100mm

T2.9

Arri Pl

46.3mm

0.8m/2'7"

280°

120°

48°

13

114mm

255mm/10"

3.8kg/8.4lbs

80-250mm

T2.9

Arri Pl

46.3mm

1.5m/4'11"

280°

120°

48°

13

114mm

255mm/10"

3.8kg/8.4lbs


Price on request  (zzgl. MwSt./ex VAT)


Fujinon XK6x20 Cabrio T3.5

Empowering Creators with a 4K optical performance

XK6x20 is a zoom lens for cinema camera that offers high optical performance compatible with 4K cameras and covers a wide range of focal length from 20mm to 120mm. It also realizes T3.5 brightness in the entire zoom range. There is no T drop and it offers comfortable operation. Various scenes can be shot with this single lens.

Camera specification Super 35mm PL Mount camera
Focal length:   20 - 120 mm
Zoom range:    6 x
T-No.:      T3.5
Minimum object distance (M.O.D):    1.1m/3.61ft
Object dimensions (at the M.O.D):  20mm 1109 x 624mm
[Horizontal × Vertical] :  120mm 182mm × 102mm
Angle of view [Horizontal × Vertical]:  20mm 63°41′ × 38°30′
16:9 aspect ratio :    120mm 11°49′ × 6°40′
Diameter × Length:   114 × 239 mm
Weight:        2.4 kg without Drive Unit


Euro 16.800,00 (zzgl. MwSt./ex VAT)



Fujinon HK3.1x14.5 T2.0 Primarily Wide

HK3.1x14.5  14.5-45mm T2.0 covers unlimited focal lengths in a range where primes previously were the rule. This lens works like a high-end Prime when dealing with distortion, chromatic aberration, and all the tough challenges of wide angle lens design.

Camera specification Super 35mm PL Mount camera
Focal length:  14.5 - 45 mm
Zoom range:   3.1 x
T-No.:      T2.0
M.O.D from image plane:  0.71 m /2.3ft.
Object dimensions (at the M.O.D):  14.5 mm   693 × 390 mm
1.78 : 1 Aspect raito* 45 mm   215 × 121 mm
Angular field of view:  20mm 63°41′ × 38°30′
1.78 : 1 Aspect raito* :  45mm 29°52' x 17°04'

Focus rotation:

280°

Zoom rotation:

160°

Diameter x Length:

136 x 310 mm
Weight:  6.5 kg


Euro 82.538,00 (zzgl. MwSt./ex VAT)

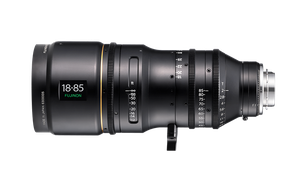

Fujinon HK4.7x18 T2.0 Primarily Dramatic

PL Mount 18-85mm T2.0 zoom lens designed for current and emerging Digital Cinematography and 35mm motion picture film cameras featuring fast T stops, and exceptional optical performance.

Camera specification Super 35mm PL Mount camera
Focal length:  18-85 mm
Zoom range:   4.7 x
T-No.:      T2.0
M.O.D from image plane:  0.82m / 2'9″
Object dimensions (at the M.O.D):  18 mm   656 × 369 mm
1.78 : 1 Aspect raito* 85 mm   139 × 78 mm
Angular field of view:  18mm 67°23' x 41°07'
1.78 : 1 Aspect raito* :  85mm 16°04' x 9°05'

Focus rotation:

280°

Zoom rotation:

160°

Diameter x Length:

136 x 352 mm
Weight:  7.0 kg
*Sensor Size : 24.0 x 13.5mm


Euro 70.907,00 (zzgl. MwSt./ex VAT)


Puhlmann Cine - HK 4.7x18 T2.0

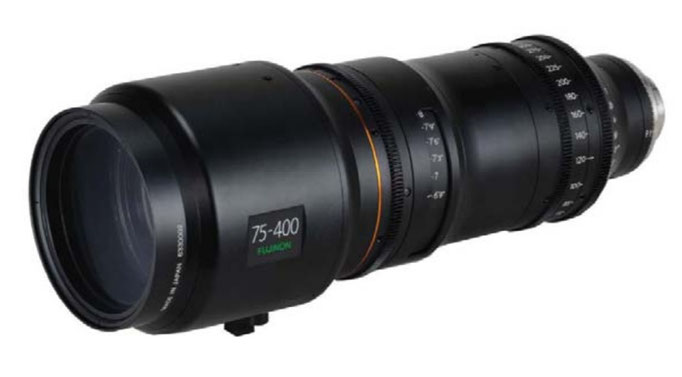

Fujinon HK5.3x75 T2.8 Primarily Far-Reaching

PL Mount 75-400mm T2.8 - T3.8 zoom lens designed for current and emerging Digital Cinematography and 35mm motion picture film cameras featuring fast T stops, and exceptional optical performance.

Camera specification Super 35mm PL Mount camera
Focal length:  75-400mm
Zoom range:   5.3 x
T-No.:      T2.8 (75 - 290 mm), T3.8 (400 mm)
Iris blades: 9
M.O.D from image plane:  2.0 m / 6'9"
Object dimensions (at the M.O.D):  75 mm   580 × 326 mm
1.78 : 1 Aspect raito* 400mm 113 x 64 mm
Angular field of view:  75mm 18°11' x 10°17'
1.78 : 1 Aspect raito* :  400mm 3°26' x 1°56'

Focus rotation:

280°

Zoom rotation:

160°

Diameter x Length:

136 x 444mm
Weight:  9.1 kg
*Sensor Size : 24.0 x 13.5mm


Euro 70.907,00 (zzgl. MwSt./ex VAT)

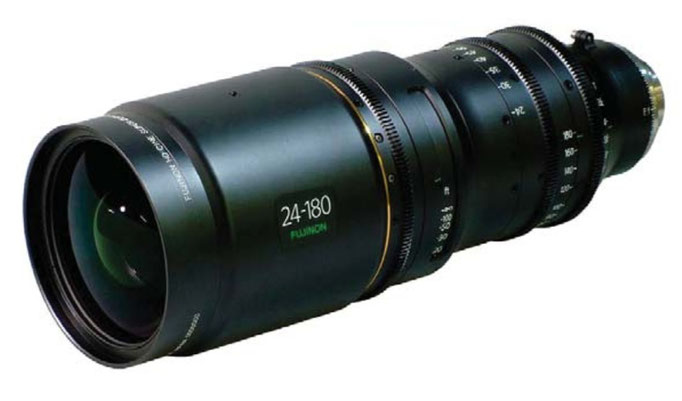

Fujinon HK7.5x24 T2.6 Primarily Versatile

PL Mount 24-180mm T2.6 zoom lens designed for current and emerging Digital Cinematography and 35mm motion picture film cameras featuring fast T stops, and exceptional optical performance.

Camera specification 35mm PL Mount camera
Focal length:  24-180mm
Zoom range:   7.5 x
T-No.:      T2.6
Iris blades: 9
M.O.D from image plane:  1.24 m / 4'1"
Object dimensions (at the M.O.D):  24 mm   924 × 520 mm
1.78 : 1 Aspect raito* 180mm 119 x 67 mm
Angular field of view:  24mm 53°08' x 31°25'
1.78 : 1 Aspect raito* :  45mm 07°38' x 4°18'

Focus rotation:

280°

Zoom rotation:

160°

Diameter x Length:

136 × 405 mm
Weight:  8.9 kg
*Sensor Size : 24.0 x 13.5mm


Euro 78.309,00 (zzgl. MwSt./ex VAT)



Fujinon ZK12x25 T3.5-3.8 Versatile Zoom

The all-new ZK12x25 offers the industry-leading zoom ratio of 12x to cover the most frequently-used 25mm wide angle to 300mm on the telephoto end. With its advanced optical performance supporting 4K cameras, the lens delivers a premium image quality across a versatile range of shooting scenes.

Camera specification 35mm PL Mount camera
Focal length:  25-300mm
Zoom range:   12 x
T-No.:      T3.5 (25-273mm), T3.85 (300mm)
Iris blades: 9
M.O.D from image plane:  1.2 m / 4'
Object dimensions (at the M.O.D):  25 mm   937 × 527 mm
1.78 : 1 Aspect raito* 25mm 57°32' x 34°19'
Angular field of view:  300mm 5°14' x 2°57'
1.78 : 1 Aspect raito* :  45mm 29°52' x 17°04'

Focus rotation:

280°

Zoom rotation:

120°

Diameter x Length:

136 × 401 mm
Weight:  8.4 kg (without Drive unit)
* Sensor size: 27.45 x 15.44 mm


Euro 37.560,00 (zzgl. MwSt./ex VAT)

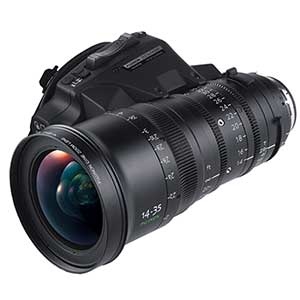

Fujinon ZK2.5x14 Cabrio T2.9

Designed using the latest proprietary optical simulation software, the PL 14-35 mm wide angle lens offers exceptional optical performance in the center of the image and in the corners of the frame. The digital servo’s 16-bit encoding assures operators that all lens data output—including the position of the zoom, iris, and focus—is extremely accurate. The PL 14-35mm lens supports Lens Data System (LDS) and /i metadata formats, and can be controlled using cinema industry standard wireless controllers as well as existing FUJINON wired and wireless units.

Camera specification 35mm PL Mount camera
Focal length:  14-35 mm
Zoom range:   2.5 x
T-No.:      T2.9
Iris blades: 9
M.O.D from image plane:  0.6 m / 2'
Object dimensions (at the M.O.D):  14 mm   701 × 394 mm
1.78 : 1 Aspect raito* 35mm 275 x 155mm
Angular field of view:  14mm 88°52' x 57°45'
1.78 : 1 Aspect raito* :  35mm 42°49' x 24°53'

Focus rotation:

200°

Zoom rotation:

120°

Diameter x Length:

114 × 231 mm
Weight:  2.4 kg (without Drive Unit)
* Sensor size: 27.45 x 15.44 mm


Euro 30.500,00 (zzgl. MwSt./ex VAT)



Fujinon ZK3.5x85  T2.9-4.0 Lightweight Telephoto zoom



ZK3.5x85 is a telephoto zoom lens with a frequuently-used focal length covering from 85 to 300mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.

Camera specification 35mm PL Mount camera
Focal length:  85-300 mm
Zoom range:   3.5 x
T-No.:      T2.9 (85-218mm), T4.0 (300mm)
Iris blades: 9
M.O.D from image plane:  1,2m/4'
Object dimensions (at the M.O.D):  85 mm   274 × 154 mm
1.78 : 1 Aspect raito* 300mm 79 x 44mm
Angular field of view:  85mm 18°21' x 10°23'
1.78 : 1 Aspect raito* :  300mm 5°14' x 2°57'

Focus rotation:

200°

Zoom rotation:

120°

Diameter x Length:

114 × 249 mm
Weight:  2.5 kg (without Drive Unit)
* Sensor size: 27.45 x 15.44 mm


Euro 29.867,00 (zzgl. MwSt./ex VAT)



Fujinon ZK4.7x19 T2.9 Lightweight Standard Zoom

ZK4.7x19 is a stamdard zoom lens with a frequuently-used focal length covering from 19 to 90mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.

Camera specification 35mm PL Mount camera
Focal length:  19-90mm
Zoom range:   4.7 x
T-No.:      T2.9
Iris blades: 9
M.O.D from image plane:  0.85 m / 2' 10"
Object dimensions (at the M.O.D):  19 mm   917 × 516 mm
1.78 : 1 Aspect raito* 90mm 193 x 109mm
Angular field of view:  19mm 71°41' x 44°14'
1.78 : 1 Aspect raito* :  90mm 17°20' x 9°48'

Focus rotation:

200°

Zoom rotation:

120°

Diameter x Length:

114 × 226 mm
Weight:  2.3 kg (without Drive Unit)
* Sensor size: 27.45 x 15.44 mm


Euro 27.813,00 (zzgl. MwSt./ex VAT)



Fujinon MK 50-135mm T2.9

“FUJINON MK50-135mm T2.9” achieves high optical performance and low distortion with T2.9 speed across the entire zoom range. With MK18-55mm, it covers standard 18 to 135mm focal length for cinema production. Super 35mm/APS-C sensor compatibility and E-mount dedicated design have led to an ultra-compact & “less than 1kg” lightweight body, and excellent cost performance. It suppresses “focus shift and optical axis shift while zooming” and “Lens breathing”. Also, it features three fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch and a 200° focus rotation angle for sophisticated operability.

Focal length:  50-135mm
Zoom range:   2.7 x
F-No.: F2.75
T-No.:      T2.9
Iris blades: 9
Image size: 24.84mm x 13.97mm (ø28.5mm)
Minimum Object distance (M.O.D): 1.2m / 3ft 11in with macro function 0.85m / 2ft 9in
Object distance at M.O.D: 50mm 534mm x 300mm
(H x V) 1.78 : 1 Aspect Ratio* : 135mm 196mm x 110mm
Angle of view (H×V): 50mm 27.9° x 15.9°
1.78 : 1 Aspect raito* :  135mm 10.5° x5.9°

Filter diameter:

82mm

Front diameter:

85mm

Length:

206.3mm
Weight: 980g
Lens Mount: E-Mount
* Sensor size: 24.84 x 13.97 mm


Euro 3.799,00 (zzgl. MwSt./ex VAT)


Puhlmann Cine - MK 50-135mm T2.9

Fujinon MK 18-55mm T2.9

“FUJINON MK18-55mm T2.9” achieves high optical performance and low distortion with T2.9 speed across the entire zoom range. With MK50-135mm, it covers standard 18 to 135mm focal length for cinema production. Super 35mm / APS-C sensor compatibility and E-mount dedicated design have led to an ultra-compact & “less than 1kg” lightweight body, and excellent cost performance. It suppresses “focus shift and optical axis shift while zooming” and “Lens breathing”. Also, it features three fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch and a 200° focus rotation angle for sophisticated operability.

Focal length:  18-55 mm
Zoom range:   3.0x
F-No.: F2.75
T-No.:      T2.9
Iris blades: 9
Image size: 24.84mm x 13.97mm (ø28.5mm)
Minimum Object distance (M.O.D): 0.85m / 2ft 9in with macro function 0.38m / 1ft 2.9in
Object Dimensions at M.O.D:  18mm 924mm x 520mm
(H x V) 16 : 9 Aspect Ratio* : 55mm 291mm x 164mm
Angle of view (H×V): 18mm 69.2° x 42.4°
16 : 9 Aspect Ratio* :  55mm 25.5° x 14.5°

Filter diameter:

82mm

Front diameter:

85mm

Length:

206.3mm
Weight: 980g
Lens Mount: E-Mount
* Sensor size: 24.84 x 13.97 mm


Euro 3.599,00 (zzgl. MwSt./ex VAT)


Puhlmann Cine - MK 18-55mm T2.9

Accessories


Puhlmann Cine - EFL-127UV

Fujinon UV-Filter Für 127 mm Filtergewinde

EFL-127UV





Euro 1.082,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - EFL-127PL

Fujinon Polfilter (circular) Für 127 mm Filtergewinde

EFL-127PL









Euro 1.722,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - EFL-82UV

Fujinon UV-Filter Für 82 mm Filtergewinde

EFl-82UV







Euro 966,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - EFL82PL

Fujinon Polfilter (circular) Für 82 mm Filtergewinde

EFl-82PL







Euro 378,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - ESM-15A-SA

Fujinon Digital Servo Unit for Fujinon ZK12 x 25 Cine Zoom Lens

ESM-15A-SA







Euro 11.550,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - HS-304A-114

Sonnenblende für ZK4,7x u. ZK3,5x

HS-304A-114







Euro 302,00,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine - HS-304B-114

Fujinon Lens Hood for 19-90mm and 85-300mm Cabrio Lens

HS-304B-114







Euro 288,00 (zzgl. MwSt./ex VAT)






Puhlmann Cine -  SA-206M-R25

Power Source Cable 20pin(Lens) to 12PIN (Camera) (L=25cm)

SA-206M-R25









Euro 470,00 (zzgl. MwSt./ex VAT)








Power Source Cable 20pin(Lens) to 12PIN (Camera) (L=40cm)

SA-206M-R40







Euro 470,00 (zzgl. MwSt./ex VAT)
